VN820PT13TR

Part No :: VN820PT13TR

Manufacturer: STMicroelectronics

VIGOR # :: 4901582

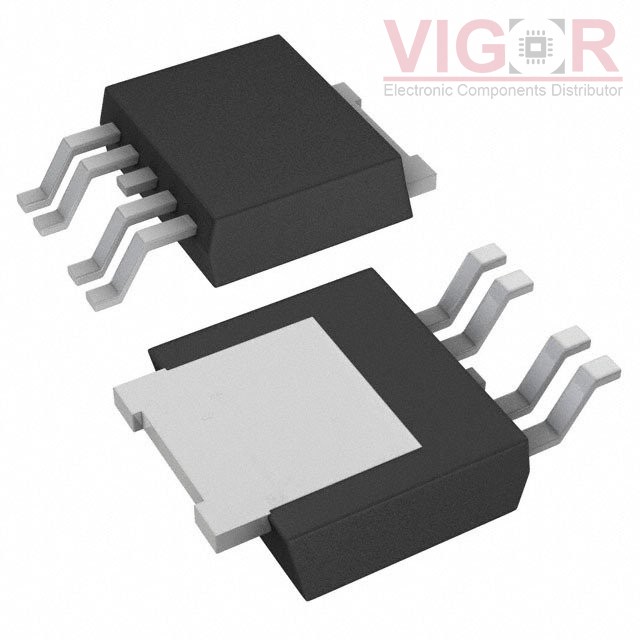

Description: IC PWR DRIVER N-CHANNEL 1:1 PPAK

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: VN820PT13TR PDF

Country of origin: -

Date code: -

VN820PT13TR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	5.5V ~ 36V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	9A
Rds On (Typ):	40mOhm (Max)
Input Type:	Non-Inverting
Features:	Auto Restart, Status Flag
Fault Protection:	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PPAK
Package / Case:	TO-252-5, DPak (4 Leads + Tab), TO-252AD
