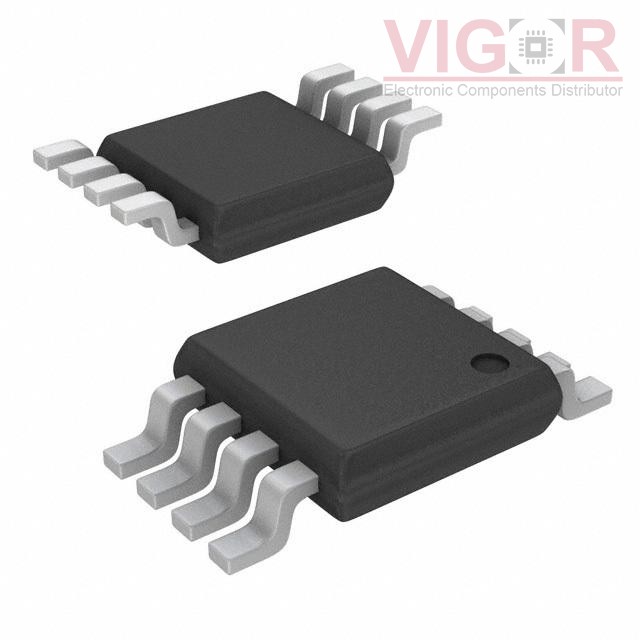

AP2820BMM-G1

Part No :: AP2820BMM-G1

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 4901854

Description: IC PWR SWITCH N-CHAN 1:1 8MSOP

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: AP2820BMM-G1 PDF

Country of origin: -

Date code: -

AP2820BMM-G1 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Switch Type:	USB Switch
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	2A
Rds On (Typ):	60mOhm
Input Type:	Non-Inverting
Features:	Status Flag
Fault Protection:	Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	8-MSOP
Package / Case:	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
