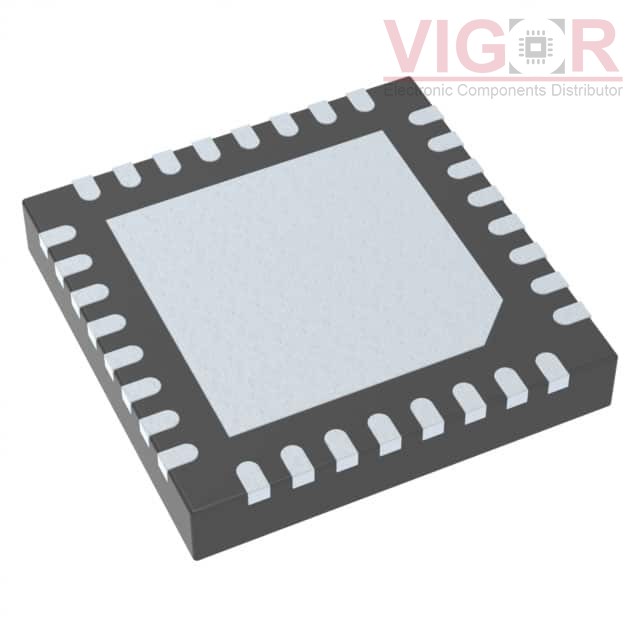

PD69200R-022320-TR

Part No :: PD69200R-022320-TR

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 4956021

Description: MCU FOR PD692XX FAMILY FW VER 2.

Catalog: PMIC - Power Over Ethernet (PoE) Controllers

DataSheet: PD69200R-022320-TR PDF

Country of origin: -

Date code: -

PD69200R-022320-TR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Controller (PSE)
Number of Channels:	48
Power - Max:	90 W
Internal Switch(s):	No
Auxiliary Sense:	Yes
Standards:	802.3at (PoE+), 802.3af (PoE), 802.3bt
Voltage - Supply:	3V ~ 3.63V
Current - Supply:	-
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	32-VFQFN Exposed Pad
Supplier Device Package:	32-QFN (5x5)

Alternative Products

Part Number	Manufacturer & Description	Compare
PD69200C-022319 Match 100%	Roving Networks / Microchip Technology MCU FOR PD692XX FAMILY FW VER 2.	PD69200R-022320-TR vs PD69200C-022319
PD69200R-022320 Match 100%	Roving Networks / Microchip Technology MCU FOR PD692XX FAMILY FW VER 2.	PD69200R-022320-TR vs PD69200R-022320
PD69200R-034500 Match 100%	Roving Networks / Microchip Technology MCU FOR PD692XX FAMILY FW VER 3.	PD69200R-022320-TR vs PD69200R-034500
PD69200R-034500-TR Match 100%	Roving Networks / Microchip Technology MCU FOR PD692XX FAMILY FW VER 3.	PD69200R-022320-TR vs PD69200R-034500-TR
PD69200R-035200-TR Match 100%	Roving Networks / Microchip Technology MCU FOR PD692XX FAMILY FW VER 3.	PD69200R-022320-TR vs PD69200R-035200-TR
PD69200C-022319-TR Match 100%	Roving Networks / Microchip Technology MCU FOR PD692XX FAMILY FW VER 2.	PD69200R-022320-TR vs PD69200C-022319-TR
