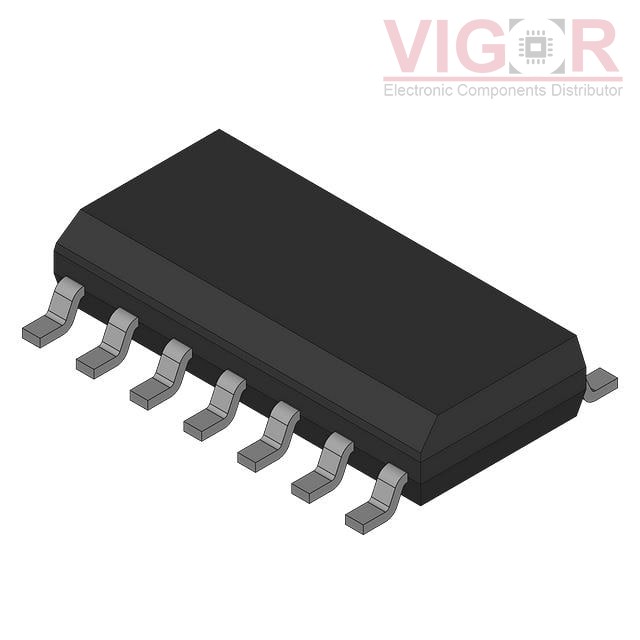

TL2843D

Part No :: TL2843D

Manufacturer: VIGOR

VIGOR # :: 3849862

Description: SWITCHING REGULATOR

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: TL2843D PDF

Country of origin: -

Date code: -

TL2843D Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Type:	Transistor Driver
Function:	Step-Up, Step-Up/Step-Down
Output Configuration:	Positive
Topology:	Boost, Flyback, Forward
Number of Outputs:	1
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	7.6V ~ 30V
Frequency - Switching:	Up to 500kHz
Duty Cycle (Max):	97%
Synchronous Rectifier:	No
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Frequency Control
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	14-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	14-SOIC
