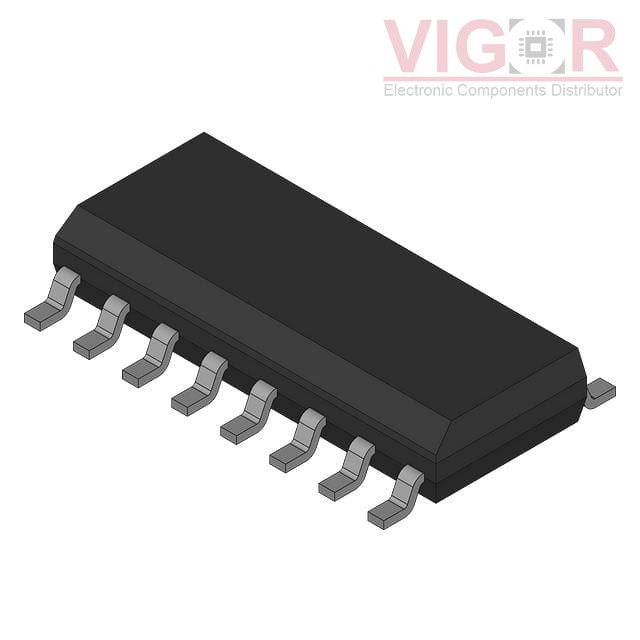

UC3524ADWG4

Part No :: UC3524ADWG4

Manufacturer: VIGOR

VIGOR # :: 3850971

Description: IC REG CTRLR MULT TOP 16SOIC

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: UC3524ADWG4 PDF

Country of origin: -

Date code: -

UC3524ADWG4 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Output Type:	Transistor Driver
Function:	Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration:	Positive
Topology:	Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
Number of Outputs:	2
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	8V ~ 40V
Frequency - Switching:	500kHz
Duty Cycle (Max):	45%
Synchronous Rectifier:	No
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Frequency Control
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	16-SOIC
