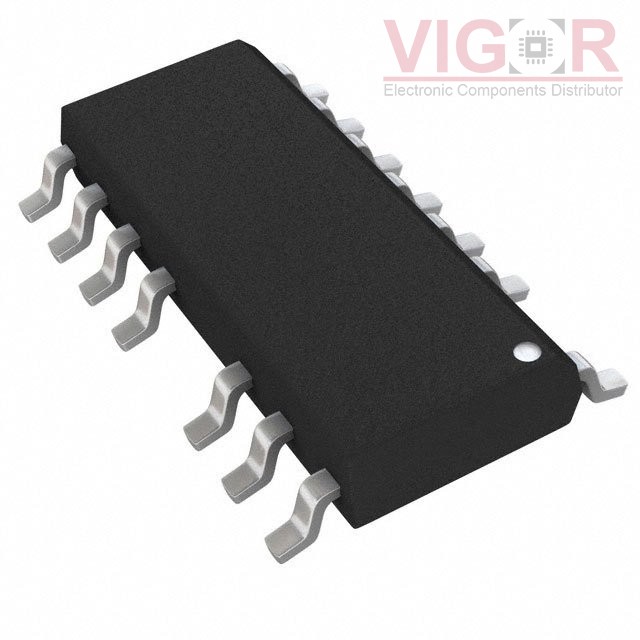

UCC25630-4DDBT

Part No :: UCC25630-4DDBT

Manufacturer: Texas Instruments

VIGOR # :: 3851491

Description: HALF BRIDGE CONT WITH HV DRIVER

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: UCC25630-4DDBT PDF

Country of origin: -

Date code: -

UCC25630-4DDBT Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Type:	Transistor Driver
Function:	-
Output Configuration:	Positive, Isolation Capable
Topology:	Half-Bridge
Number of Outputs:	1
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	13V ~ 26V
Frequency - Switching:	35kHz ~ 1MHz
Duty Cycle (Max):	50%
Synchronous Rectifier:	No
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Hybrid Hysteretic Control (HHC)
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.154", 3.90mm Width), 14 Leads
Supplier Device Package:	14-SOIC
