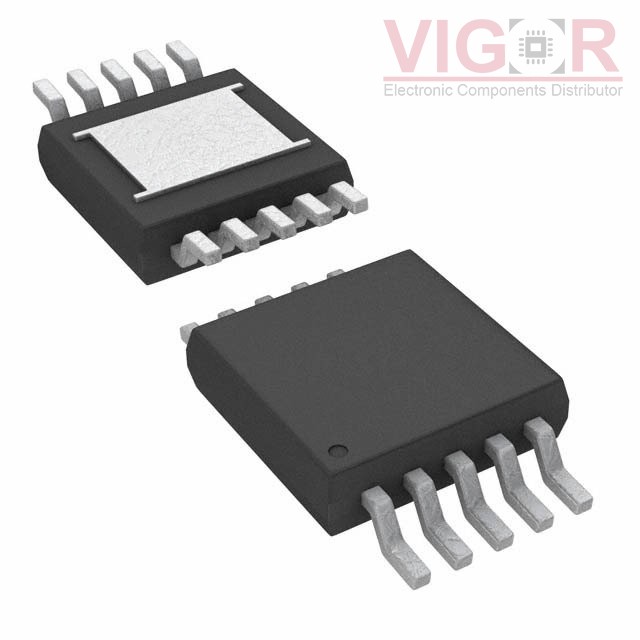

LTC3809IMSE-1#PBF

Part No :: LTC3809IMSE-1#PBF

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3851658

Description: IC REG CTRLR BUCK 10MSOP

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: LTC3809IMSE-1#PBF PDF

Country of origin: -

Date code: -

LTC3809IMSE-1#PBF Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Output Type:	Transistor Driver
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Number of Outputs:	1
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	2.75V ~ 9.8V
Frequency - Switching:	550kHz
Duty Cycle (Max):	100%
Synchronous Rectifier:	Yes
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Enable, Soft Start, Tracking
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package:	10-MSOP-EP
