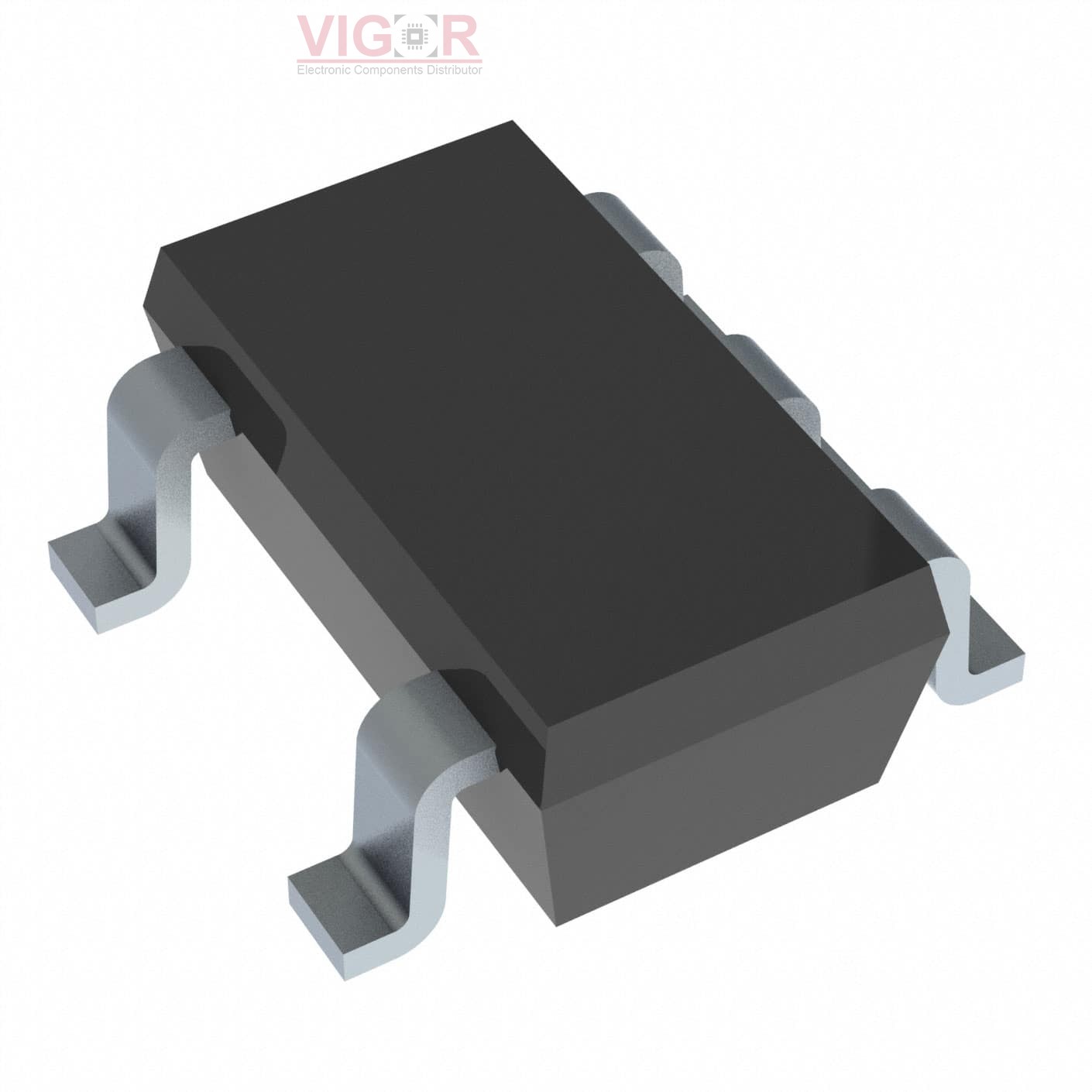

R1224N502H-TR-FE

Part No :: R1224N502H-TR-FE

Manufacturer: RICOH Electronic Devices Co., LTD.

VIGOR # :: 3851672

Description: 18.5V INPUT PWM/VFM STEP-DOWN DC

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: R1224N502H-TR-FE PDF

Country of origin: -

Date code: -

R1224N502H-TR-FE Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Output Type:	Transistor Driver
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Number of Outputs:	1
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	2.3V ~ 18.5V
Frequency - Switching:	500kHz
Duty Cycle (Max):	100%
Synchronous Rectifier:	No
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Enable
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	SC-74A, SOT-753
Supplier Device Package:	SOT-23-5
