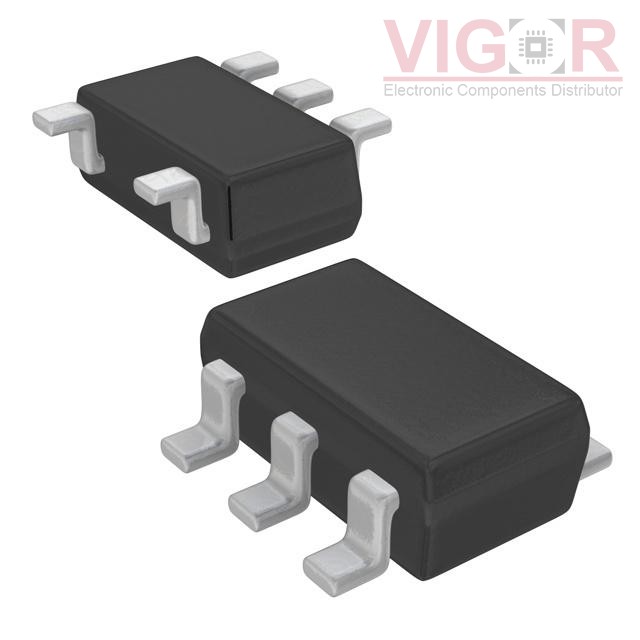

XC9302A503MR-G

Part No :: XC9302A503MR-G

Manufacturer: Torex Semiconductor Ltd.

VIGOR # :: 3852071

Description: STEP-UP & STEP-DOWN 300KHZ DCDC

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: XC9302A503MR-G PDF

Country of origin: -

Date code: -

XC9302A503MR-G Specifications

Type	Description
Series:	XC9302
Package:	Tape & Reel (TR)
Part Status:	Active
Output Type:	PWM
Function:	Step-Up/Step-Down
Output Configuration:	Positive
Topology:	Buck-Boost
Number of Outputs:	1
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	2V ~ 10V
Frequency - Switching:	300kHz
Duty Cycle (Max):	92%
Synchronous Rectifier:	No
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Enable
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	SC-74A, SOT-753
Supplier Device Package:	SOT-25
