TFS7701H

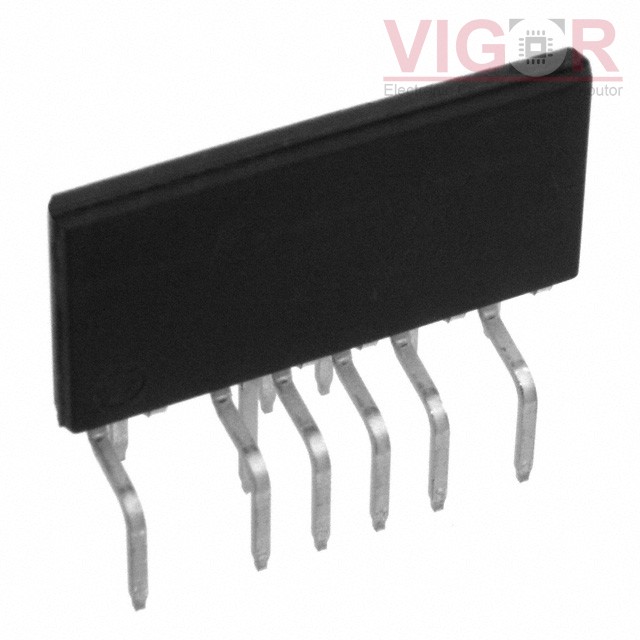

Product image
Product thumb
Part No :

TFS7701H

Manufacturer
Power Integrations
VIGOR # :

3852080

Description
IC REG CTRLR MULT TOP ESIP-16F
Catalog
PMIC - Voltage Regulators - DC DC Switching Controllers
DataSheet
TFS7701H PDF
Country of origin
-
Date code
-
ads
TFS7701H Specifications
Type Description
Series:HiperTFS™-2
Package:Tube
Part Status:Active
Output Type:Transistor Driver
Function:Step-Up, Step-Down
Output Configuration:Positive, Isolation Capable
Topology:Flyback, Forward Converter
Number of Outputs:2
Output Phases:1
Voltage - Supply (Vcc/Vdd):Up to 11.5V
Frequency - Switching:66kHz, 132kHz
Duty Cycle (Max):63%
Synchronous Rectifier:No
Clock Sync:No
Serial Interfaces:-
Control Features:Enable, Reset
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:16-SSIP, 12 Leads, Exposed Pad, Formed Leads
Supplier Device Package:eSIP-16F
