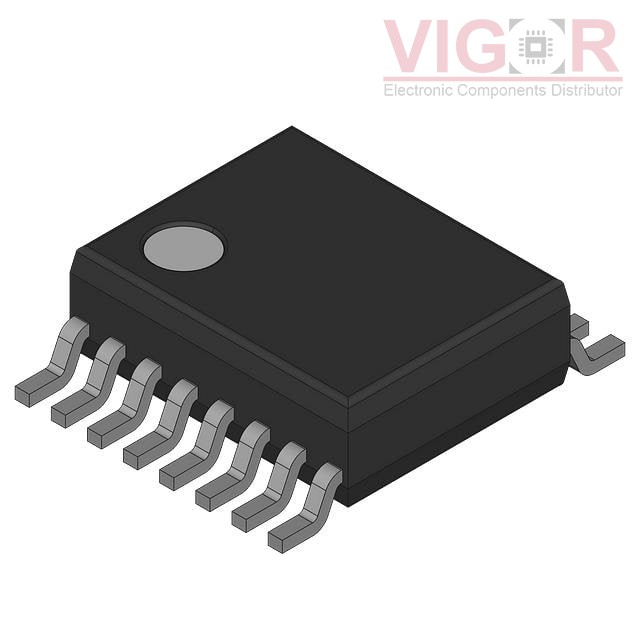

LV5069JA-AH

Part No :: LV5069JA-AH

Manufacturer: VIGOR

VIGOR # :: 3852562

Description: SWITCHING REGULATOR

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: LV5069JA-AH PDF

Country of origin: -

Date code: -

LV5069JA-AH Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Output Type:	Transistor Driver
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Number of Outputs:	1
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	4.5V ~ 23V
Frequency - Switching:	330kHz
Duty Cycle (Max):	94%
Synchronous Rectifier:	No
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-LSSOP (0.173", 4.40mm Width)
Supplier Device Package:	16-SSOP
