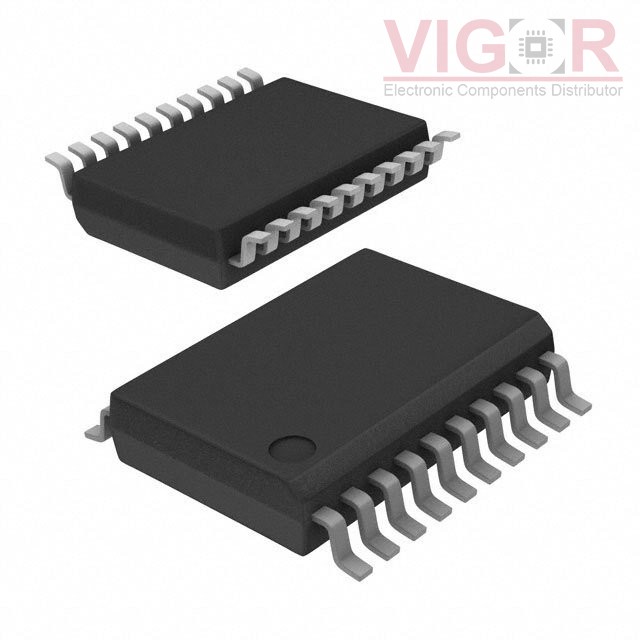

LT1683EG#PBF

Part No :: LT1683EG#PBF

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3854360

Description: IC REG CTRLR PUSH-PULL 20SSOP

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: LT1683EG#PBF PDF

Country of origin: -

Date code: -

LT1683EG#PBF Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Output Type:	Transistor Driver
Function:	Step-Up/Step-Down
Output Configuration:	Positive and Negative
Topology:	Push-Pull
Number of Outputs:	1
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	7.3V ~ 20V
Frequency - Switching:	250kHz
Duty Cycle (Max):	46%
Synchronous Rectifier:	No
Clock Sync:	Yes
Serial Interfaces:	-
Control Features:	Enable, Frequency Control, Soft Start
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	20-SSOP (0.209", 5.30mm Width)
Supplier Device Package:	20-SSOP
