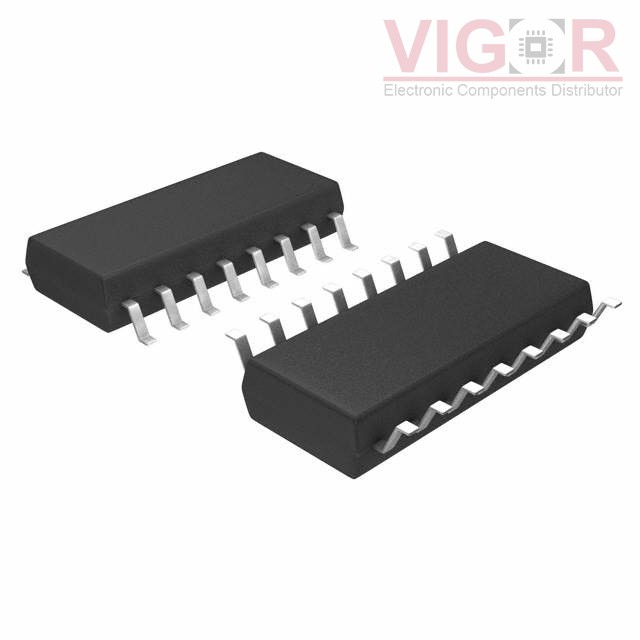

SG3524NSR

Part No :: SG3524NSR

Manufacturer: Texas Instruments

VIGOR # :: 3854655

Description: IC REG CTRLR MULT TOPOLOGY 16SO

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: SG3524NSR PDF

Country of origin: -

Date code: -

SG3524NSR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Type:	Transistor Driver
Function:	Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration:	Positive, Isolation Capable
Topology:	Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
Number of Outputs:	2
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	8V ~ 40V
Frequency - Switching:	450kHz
Duty Cycle (Max):	45%
Synchronous Rectifier:	No
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Current Limit, Frequency Control
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.209", 5.30mm Width)
Supplier Device Package:	16-SO
