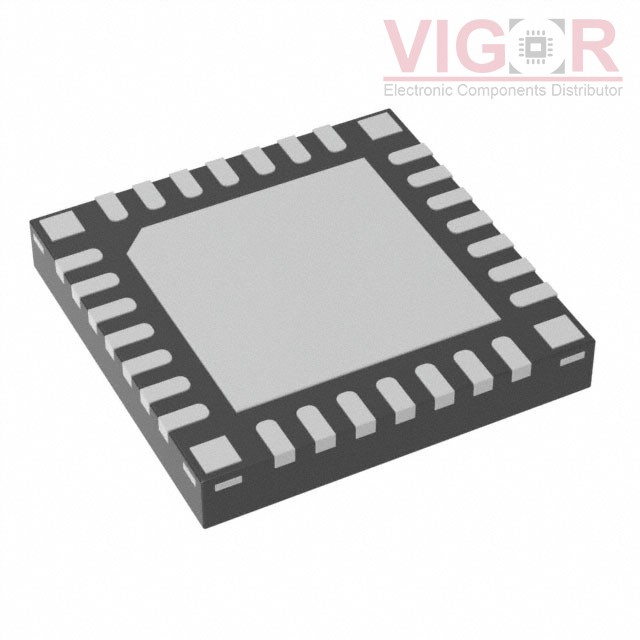

LM5036RJBT

Part No :: LM5036RJBT

Manufacturer: Texas Instruments

VIGOR # :: 3854688

Description: HALF-BRIDGE PWM CONTROLLER WITH

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: LM5036RJBT PDF

Country of origin: -

Date code: -

LM5036RJBT Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Type:	PWM
Function:	Step-Up/Step-Down
Output Configuration:	Positive, Isolation Capable
Topology:	Half-Bridge
Number of Outputs:	2
Output Phases:	2
Voltage - Supply (Vcc/Vdd):	7.5V ~ 8.1V
Frequency - Switching:	2MHz
Duty Cycle (Max):	50%
Synchronous Rectifier:	Yes
Clock Sync:	Yes
Serial Interfaces:	-
Control Features:	Current Limit, Frequency Control, Ramp
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	28-WFQFN Exposed Pad
Supplier Device Package:	28-WQFN (5x5)
