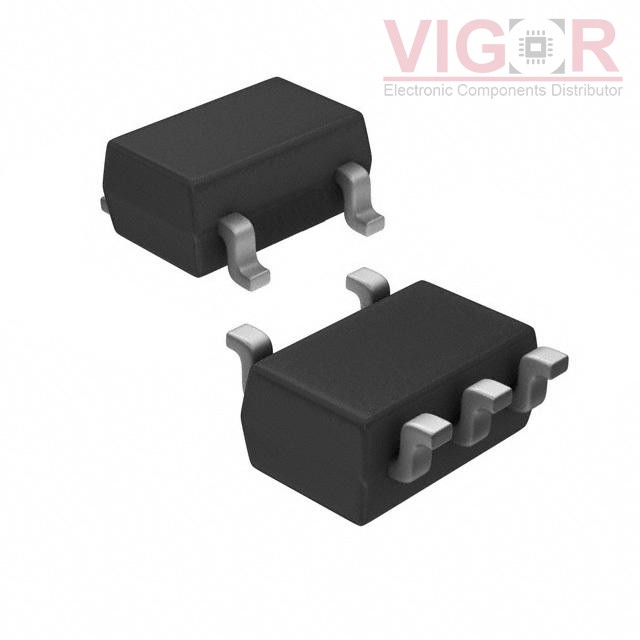

S-8520F30MC-BNPT2G

Part No :: S-8520F30MC-BNPT2G

Manufacturer: ABLIC U.S.A. Inc.

VIGOR # :: 3854974

Description: IC REG CTRLR BUCK SOT23-5

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: S-8520F30MC-BNPT2G PDF

Country of origin: -

Date code: -

S-8520F30MC-BNPT2G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Not For New Designs
Output Type:	Transistor Driver
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Number of Outputs:	1
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	2.5V ~ 16V
Frequency - Switching:	300kHz
Duty Cycle (Max):	100%
Synchronous Rectifier:	No
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Enable
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	SC-74A, SOT-753
Supplier Device Package:	SOT-23-5
