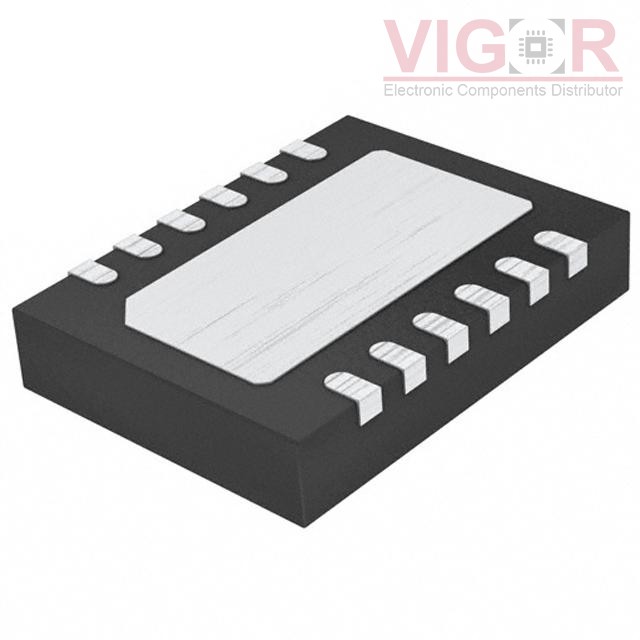

LTC3806EDE#PBF

Part No :: LTC3806EDE#PBF

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3855250

Description: IC REG CTRLR FLYBACK 12DFN

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: LTC3806EDE#PBF PDF

Country of origin: -

Date code: -

LTC3806EDE#PBF Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Output Type:	Transistor Driver
Function:	Step-Up/Step-Down
Output Configuration:	Positive
Topology:	Flyback
Number of Outputs:	1
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	10V ~ 25V
Frequency - Switching:	250kHz
Duty Cycle (Max):	89%
Synchronous Rectifier:	Yes
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Current Limit, Enable, Soft Start
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	12-WFDFN Exposed Pad
Supplier Device Package:	12-DFN (4x3)
