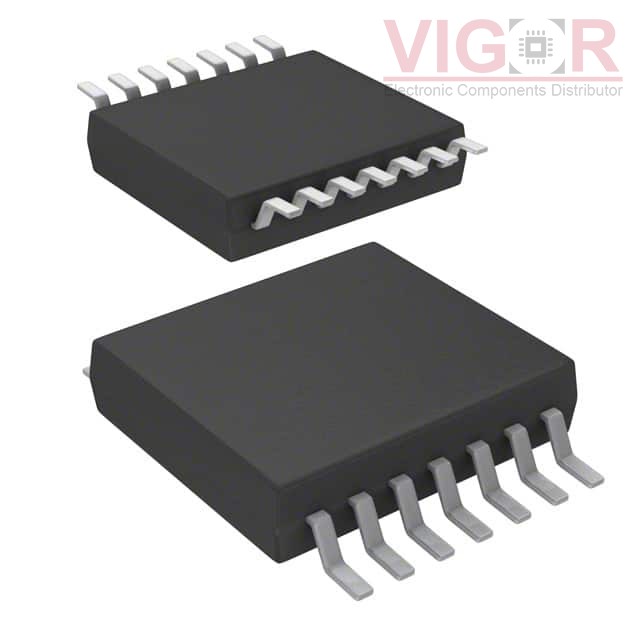

UCC28230PW

Part No :: UCC28230PW

Manufacturer: VIGOR

VIGOR # :: 3855838

Description: UCC28230 ADVANCED PWM CONTROLLER

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: UCC28230PW PDF

Country of origin: -

Date code: -

UCC28230PW Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Output Type:	Transistor Driver
Function:	Step-Up/Step-Down
Output Configuration:	Positive
Topology:	Full-Bridge, Half-Bridge, Push-Pull
Number of Outputs:	4
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	7V ~ 17V
Frequency - Switching:	100kHz ~ 550kHz
Duty Cycle (Max):	-
Synchronous Rectifier:	No
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Frequency Control, Soft Start
Operating Temperature:	-55°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	14-TSSOP
