LM5025BSD/NOPB

Part No :: LM5025BSD/NOPB

Manufacturer: Texas Instruments

VIGOR # :: 3856788

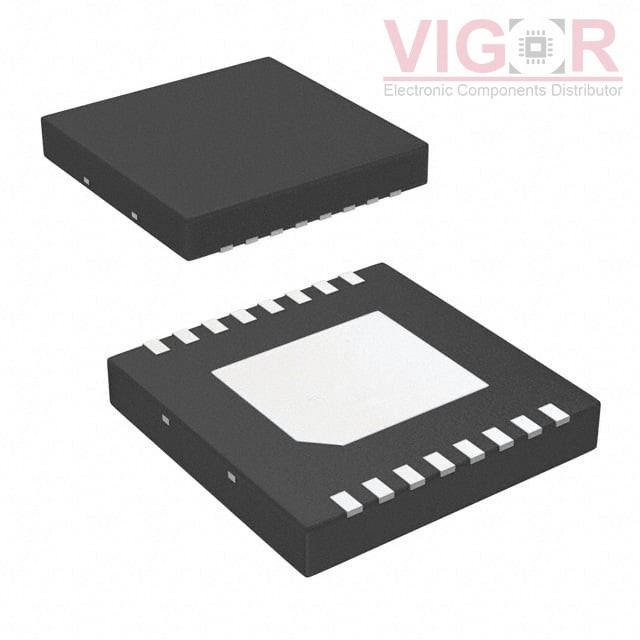

Description: IC REG CTRLR FWRD CONV 16WSON

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: LM5025BSD/NOPB PDF

Country of origin: -

Date code: -

LM5025BSD/NOPB Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Type:	Transistor Driver
Function:	Step-Up/Step-Down
Output Configuration:	Positive, Isolation Capable
Topology:	Forward Converter
Number of Outputs:	2
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	8V ~ 15V
Frequency - Switching:	200kHz ~ 400kHz
Duty Cycle (Max):	71%, 73%
Synchronous Rectifier:	No
Clock Sync:	Yes
Serial Interfaces:	-
Control Features:	Dead Time Control, Frequency Control, Ramp, Soft Start
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	16-WFDFN Exposed Pad
Supplier Device Package:	16-WSON (5x5)
