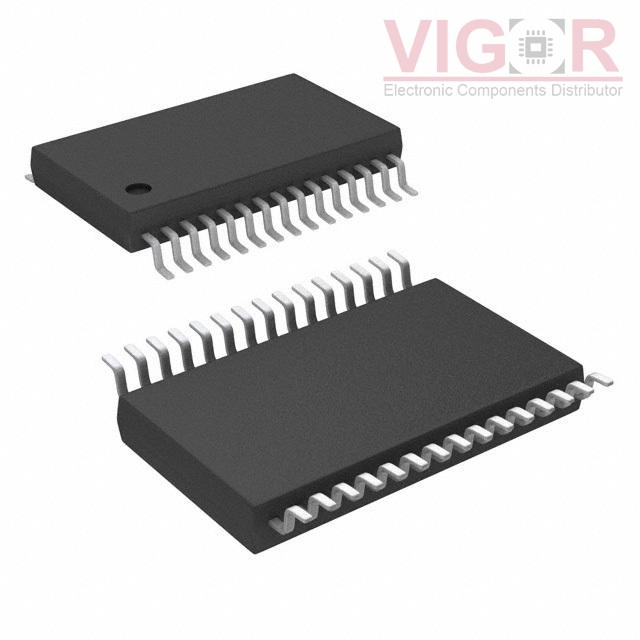

TPS5120DBTR

Part No :: TPS5120DBTR

Manufacturer: Texas Instruments

VIGOR # :: 3856800

Description: IC REG CTRLR BUCK 30TSSOP

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: TPS5120DBTR PDF

Country of origin: -

Date code: -

TPS5120DBTR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Type:	Transistor Driver
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Number of Outputs:	2
Output Phases:	2
Voltage - Supply (Vcc/Vdd):	4.5V ~ 28V
Frequency - Switching:	300kHz
Duty Cycle (Max):	83%
Synchronous Rectifier:	Yes
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Enable, Power Good, Soft Start
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	30-TFSOP (0.173", 4.40mm Width)
Supplier Device Package:	30-TSSOP
