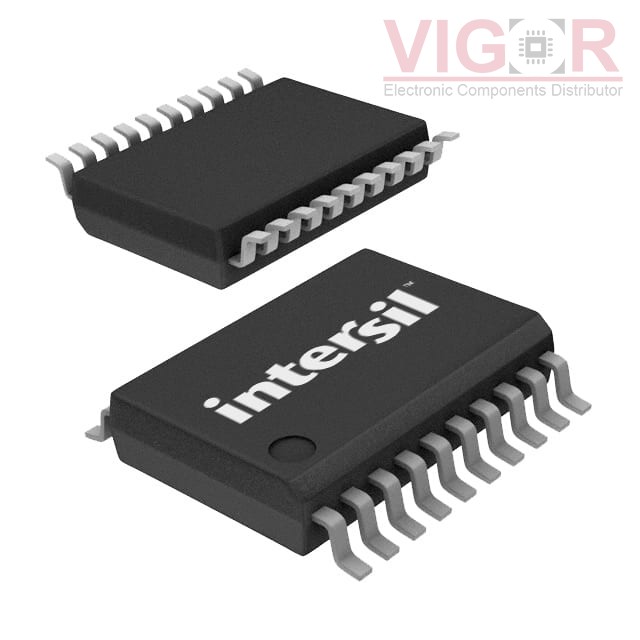

ISL78223AAZ-T

Part No :: ISL78223AAZ-T

Manufacturer: Intersil (Renesas Electronics America)

VIGOR # :: 4896078

Description: IC REG CTRLR FULL-BRIDGE 20QSOP

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: ISL78223AAZ-T PDF

Country of origin: -

Date code: -

ISL78223AAZ-T Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Output Type:	Transistor Driver
Function:	Step-Up/Step-Down
Output Configuration:	Positive, Isolation Capable
Topology:	Full-Bridge
Number of Outputs:	1
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	9V ~ 16V
Frequency - Switching:	Up to 2MHz
Duty Cycle (Max):	99%
Synchronous Rectifier:	Yes
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Frequency Control, Ramp, Soft Start
Operating Temperature:	-40°C ~ 105°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-SSOP (0.154", 3.90mm Width)
Supplier Device Package:	20-QSOP
