NCP5425DB

Part No :: NCP5425DB

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4896161

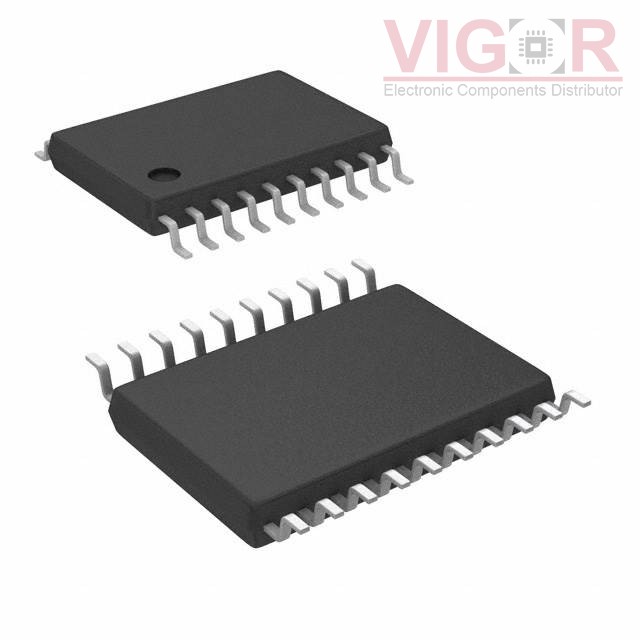

Description: IC REG CTRLR BUCK 20TSSOP

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: NCP5425DB PDF

Country of origin: -

Date code: -

NCP5425DB Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Type:	Transistor Driver
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Number of Outputs:	2
Output Phases:	2
Voltage - Supply (Vcc/Vdd):	4V ~ 16V
Frequency - Switching:	150kHz ~ 750kHz
Duty Cycle (Max):	100%
Synchronous Rectifier:	Yes
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Frequency Control
Operating Temperature:	0°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	20-TSSOP
