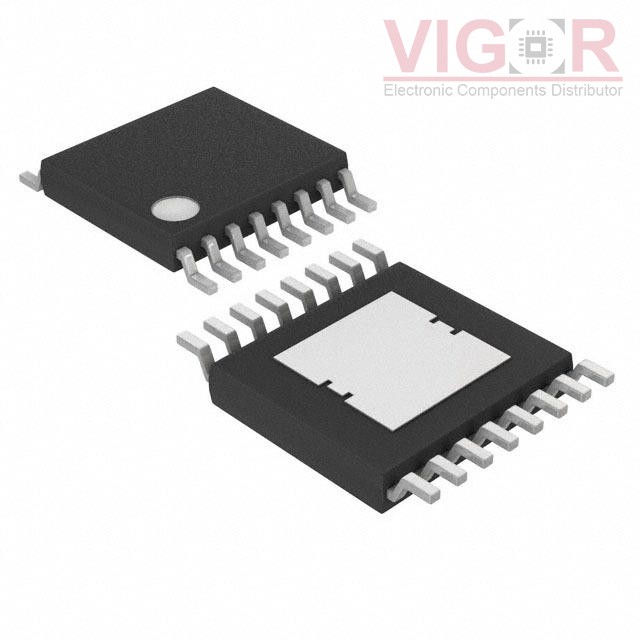

MAX5069DAUE-T

Part No :: MAX5069DAUE-T

Manufacturer: Maxim Integrated

VIGOR # :: 4896284

Description: IC REG CTRLR FWRD CONV 16TSSOP

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: MAX5069DAUE-T PDF

Country of origin: -

Date code: -

MAX5069DAUE-T Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Output Type:	Transistor Driver
Function:	Step-Up/Step-Down
Output Configuration:	Positive, Isolation Capable
Topology:	Forward Converter
Number of Outputs:	1
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	10.8V ~ 24V
Frequency - Switching:	25kHz ~ 1.25MHz
Duty Cycle (Max):	100%
Synchronous Rectifier:	No
Clock Sync:	Yes
Serial Interfaces:	-
Control Features:	Dead Time Control, Enable, Frequency Control
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package:	16-TSSOP-EP
