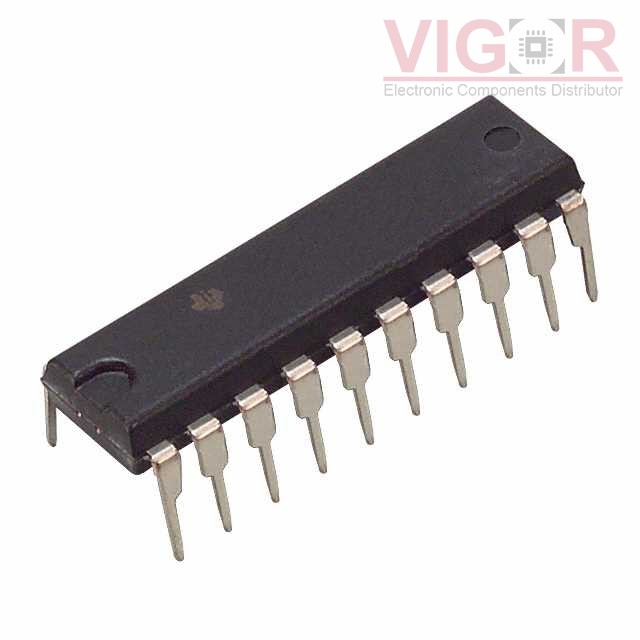

UCC39422NG4

Part No :: UCC39422NG4

Manufacturer: Texas Instruments

VIGOR # :: 4896323

Description: IC REG CTRLR MULT TOPOLOGY 20DIP

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: UCC39422NG4 PDF

Country of origin: -

Date code: -

UCC39422NG4 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Type:	Transistor Driver
Function:	Step-Up, Step-Up/Step-Down
Output Configuration:	Positive
Topology:	Boost, Flyback, SEPIC
Number of Outputs:	1
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	1.8V ~ 8V
Frequency - Switching:	150kHz ~ 1.2MHz
Duty Cycle (Max):	88%
Synchronous Rectifier:	Yes
Clock Sync:	Yes
Serial Interfaces:	-
Control Features:	Enable, Frequency Control, Low Battery, Reset
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Through Hole
Package / Case:	20-DIP (0.300", 7.62mm)
Supplier Device Package:	20-PDIP
