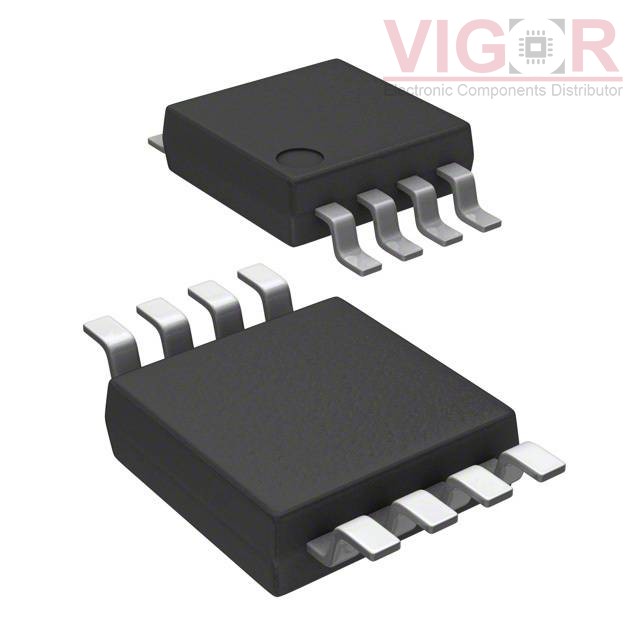

MAX5070BAUA

Part No :: MAX5070BAUA

Manufacturer: Maxim Integrated

VIGOR # :: 4896435

Description: IC REG CTRLR FLYBACK 8UMAX

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: MAX5070BAUA PDF

Country of origin: -

Date code: -

MAX5070BAUA Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Type:	Transistor Driver
Function:	Step-Up/Step-Down
Output Configuration:	Positive, Isolation Capable
Topology:	Flyback
Number of Outputs:	1
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	10.8V ~ 30V
Frequency - Switching:	20kHz ~ 1MHz
Duty Cycle (Max):	49.8%
Synchronous Rectifier:	No
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Frequency Control
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package:	8-uMAX
