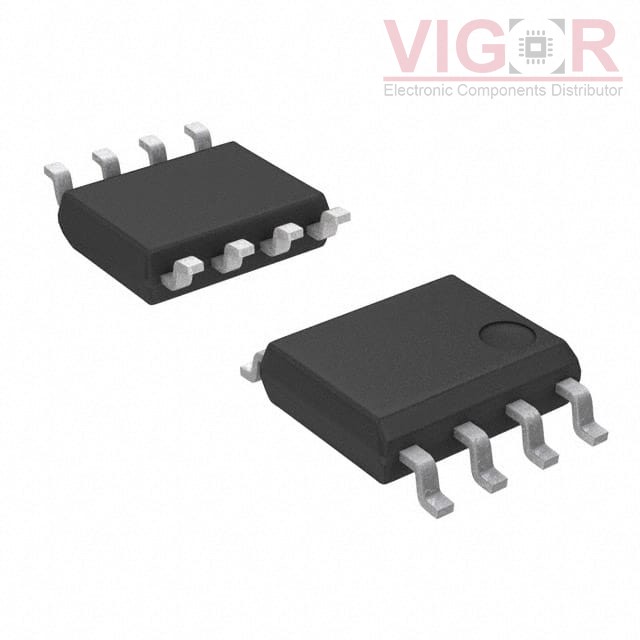

AP3101UMTR-E1

Part No :: AP3101UMTR-E1

Manufacturer: Zetex Semiconductors (Diodes Inc.)

VIGOR # :: 4896608

Description: IC PWM CONTROLLER SO-8

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: AP3101UMTR-E1 PDF

Country of origin: -

Date code: -

AP3101UMTR-E1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Output Type:	PWM
Function:	-
Output Configuration:	Positive
Topology:	-
Number of Outputs:	1
Output Phases:	-
Voltage - Supply (Vcc/Vdd):	20V
Frequency - Switching:	65kHz
Duty Cycle (Max):	90%
Synchronous Rectifier:	Yes
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Current Limit, Frequency Control
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	-
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SOIC
