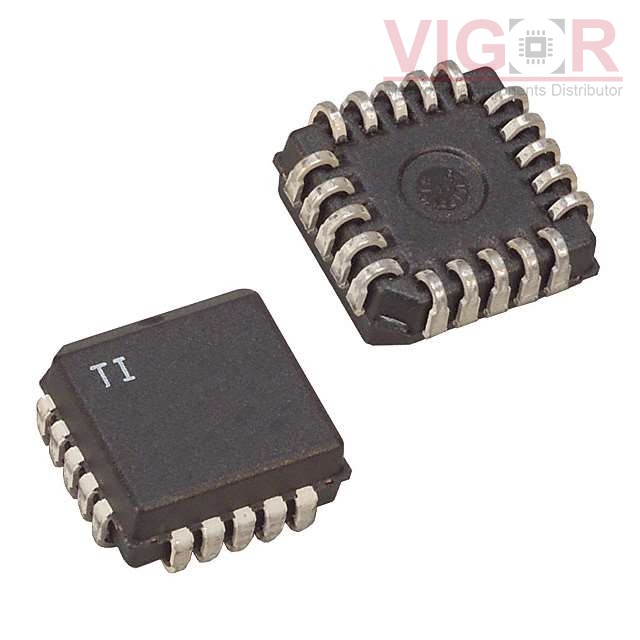

UC3856QG3

Part No :: UC3856QG3

Manufacturer: Texas Instruments

VIGOR # :: 4896742

Description: IC REG CTRLR MULT TOP 20PLCC

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: UC3856QG3 PDF

Country of origin: -

Date code: -

UC3856QG3 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Type:	Transistor Driver
Function:	Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration:	Positive
Topology:	Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
Number of Outputs:	2
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	7V ~ 40V
Frequency - Switching:	200kHz
Duty Cycle (Max):	47%
Synchronous Rectifier:	Yes
Clock Sync:	Yes
Serial Interfaces:	-
Control Features:	Enable, Frequency Control, Soft Start
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-LCC (J-Lead)
Supplier Device Package:	20-PLCC (9x9)
