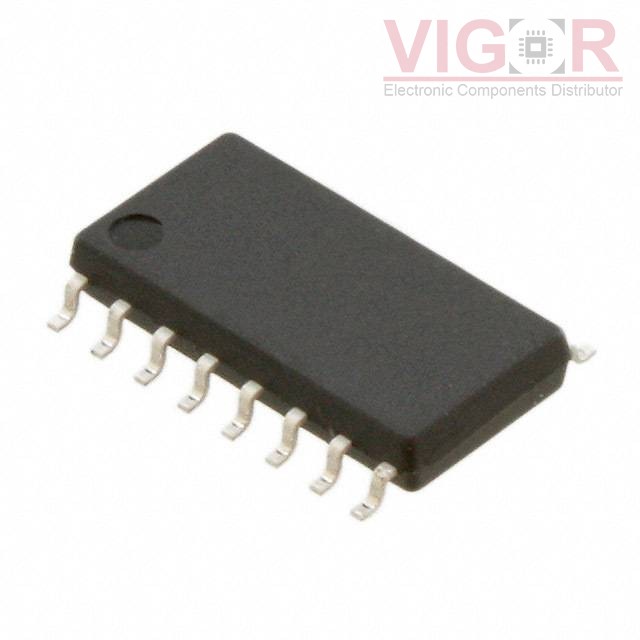

NJM3524M-TE1

Part No :: NJM3524M-TE1

Manufacturer: New Japan Radio (NJR)

VIGOR # :: 4897029

Description: IC REG SWITCHING BIPO 16DMP

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: NJM3524M-TE1 PDF

Country of origin: -

Date code: -

NJM3524M-TE1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Output Type:	Transistor Driver
Function:	Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration:	Positive, Isolation Capable
Topology:	Buck, Boost, Flyback, Push-Pull
Number of Outputs:	2
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	8V ~ 40V
Frequency - Switching:	30kHz
Duty Cycle (Max):	45%
Synchronous Rectifier:	Yes
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Current Limit
Operating Temperature:	-20°C ~ 75°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.209", 5.30mm Width)
Supplier Device Package:	16-DMP
