SG3526BDW-TR

Part No :: SG3526BDW-TR

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 4897101

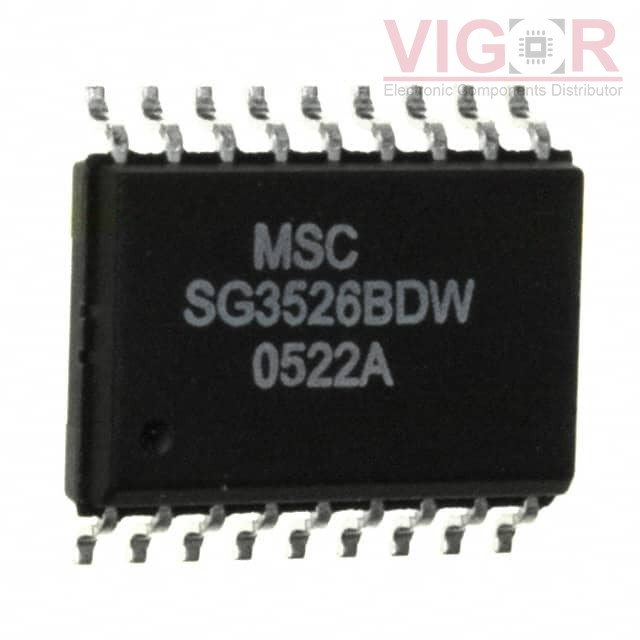

Description: IC REG CTRLR BUCK/FLYBACK 18SOIC

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: SG3526BDW-TR PDF

Country of origin: -

Date code: -

SG3526BDW-TR Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Discontinued at Digi-Key
Output Type:	Transistor Driver
Function:	Step-Down, Step-Up/Step-Down
Output Configuration:	Positive
Topology:	Buck, Flyback
Number of Outputs:	2
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	8V ~ 35V
Frequency - Switching:	1Hz ~ 500kHz
Duty Cycle (Max):	49%
Synchronous Rectifier:	Yes
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Dead Time Control, Enable, Frequency Control, Reset, Soft Start
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Surface Mount
Package / Case:	18-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	18-SOIC
