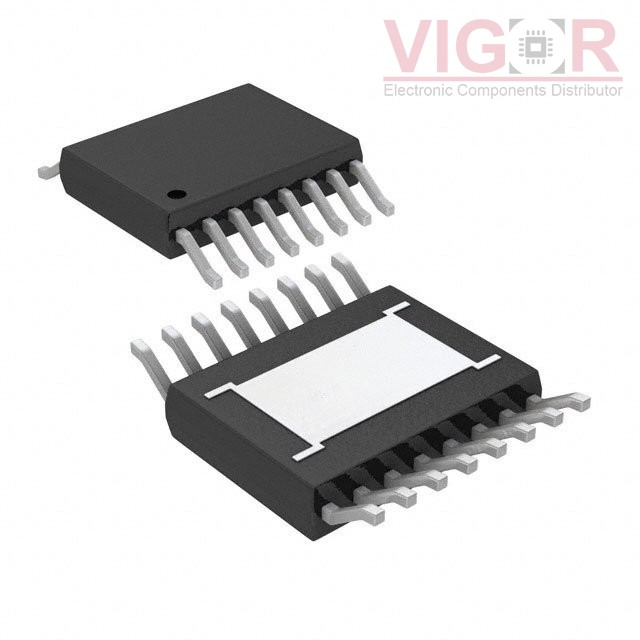

LT3509HMSE#TRPBF

Part No :: LT3509HMSE#TRPBF

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3889178

Description: IC REG BUCK ADJ 700MA DL 16MSOP

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

DataSheet: LT3509HMSE#TRPBF PDF

Country of origin: -

Date code: -

LT3509HMSE#TRPBF Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Output Type:	Adjustable
Number of Outputs:	2
Voltage - Input (Min):	3.6V
Voltage - Input (Max):	36V
Voltage - Output (Min/Fixed):	0.8V
Voltage - Output (Max):	34.2V
Current - Output:	700mA
Frequency - Switching:	260kHz ~ 2.15MHz
Synchronous Rectifier:	No
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	16-TFSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package:	16-MSOP-EP
