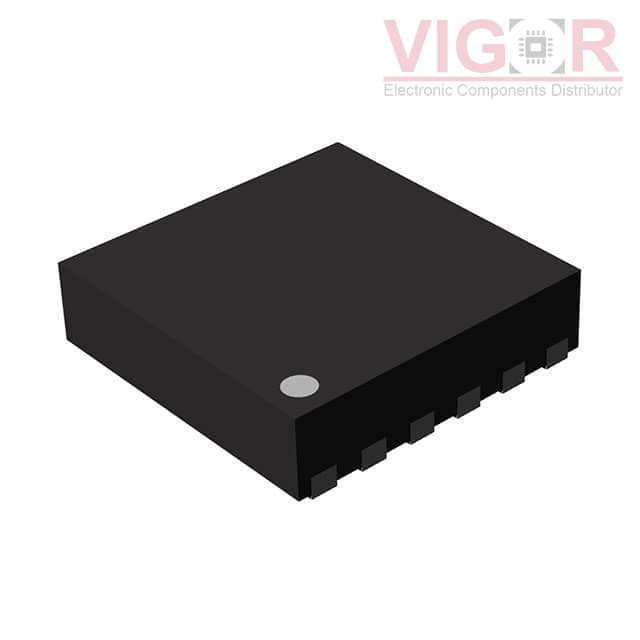

RP506L101H-TR-K

Part No :: RP506L101H-TR-K

Manufacturer: RICOH Electronic Devices Co., LTD.

VIGOR # :: 3889835

Description: 2A PWM/VFM STEP-DOWN DC/DC CONVE

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

DataSheet: RP506L101H-TR-K PDF

Country of origin: -

Date code: -

RP506L101H-TR-K Specifications

Type	Description
Series:	Automotive, AEC-Q100, RP506L
Package:	Tape & Reel (TR)
Part Status:	Active
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Output Type:	Fixed
Number of Outputs:	1
Voltage - Input (Min):	2.5V
Voltage - Input (Max):	5.5V
Voltage - Output (Min/Fixed):	1V
Voltage - Output (Max):	-
Current - Output:	2A
Frequency - Switching:	2.3MHz
Synchronous Rectifier:	Yes
Operating Temperature:	-40°C ~ 125°C (TA)
Mounting Type:	Surface Mount
Package / Case:	12-WFDFN Exposed Pad
Supplier Device Package:	DFN3030-12

Alternative Products

Part Number	Manufacturer & Description	Compare
RP506L001M-TR-K Match 100%	RICOH Electronic Devices Co., LTD. 2A PWM/VFM STEP-DOWN DC/DC CONVE	RP506L101H-TR-K vs RP506L001M-TR-K
RP506L101G-TR-K Match 100%	RICOH Electronic Devices Co., LTD. 2A PWM/VFM STEP-DOWN DC/DC CONVE	RP506L101H-TR-K vs RP506L101G-TR-K
RP506L331H-TR-K Match 100%	RICOH Electronic Devices Co., LTD. 2A PWM/VFM STEP-DOWN DC/DC CONVE	RP506L101H-TR-K vs RP506L331H-TR-K
RP506L111H-TR-K Match 100%	RICOH Electronic Devices Co., LTD. 2A PWM/VFM STEP-DOWN DC/DC CONVE	RP506L101H-TR-K vs RP506L111H-TR-K
RP506L001N-TR-K Match 100%	RICOH Electronic Devices Co., LTD. 2A PWM/VFM STEP-DOWN DC/DC CONVE	RP506L101H-TR-K vs RP506L001N-TR-K
