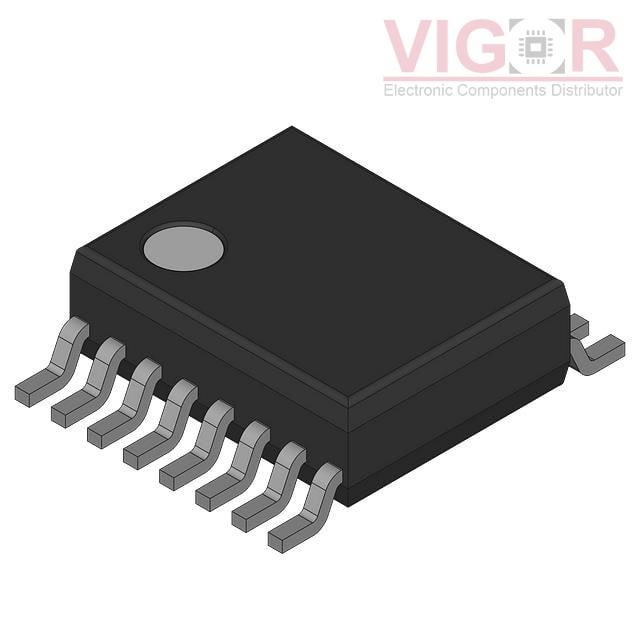

MAX1684EEE

Part No :: MAX1684EEE

Manufacturer: VIGOR

VIGOR # :: 3891022

Description: STEP-DOWN CONVERTER

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

DataSheet: MAX1684EEE PDF

Country of origin: -

Date code: -

MAX1684EEE Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Output Type:	Adjustable (Fixed)
Number of Outputs:	1
Voltage - Input (Min):	2.7V
Voltage - Input (Max):	14V
Voltage - Output (Min/Fixed):	1.25V (3.3V)
Voltage - Output (Max):	14V
Current - Output:	1A
Frequency - Switching:	300kHz
Synchronous Rectifier:	Yes
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-SSOP (0.154", 3.90mm Width)
Supplier Device Package:	16-QSOP
