RP509Z252B-E2-F

Part No :: RP509Z252B-E2-F

Manufacturer: RICOH Electronic Devices Co., LTD.

Description: 0.5A/1A 6MHZ PWM/VFM STEP-DOWN D

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

DataSheet: RP509Z252B-E2-F PDF

Availability: 4575 pieces

Current price of RP509Z252B-E2-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RP509Z252B-E2-F Specifications

Type	Description
Series:	RP509x
Package:	Tape & Reel (TR)
Part Status:	Active
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Output Type:	Fixed
Number of Outputs:	1
Voltage - Input (Min):	2.3V
Voltage - Input (Max):	5.5V
Voltage - Output (Min/Fixed):	2.5V
Voltage - Output (Max):	-
Current - Output:	500mA
Frequency - Switching:	6MHz
Synchronous Rectifier:	Yes
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount

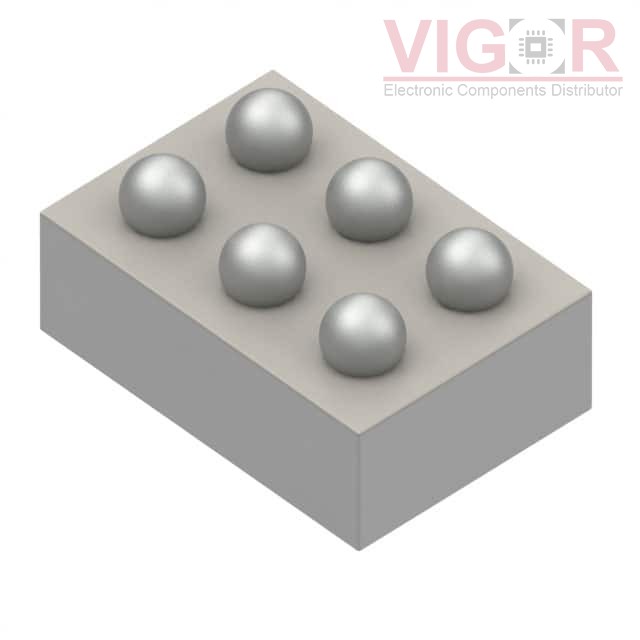

Package / Case:	6-WFBGA, WLCSP
Supplier Device Package:	WLCSP-6-P6
