LM3691TLX-0.75/NOPB

LM3691TLX-0.75/NOPB

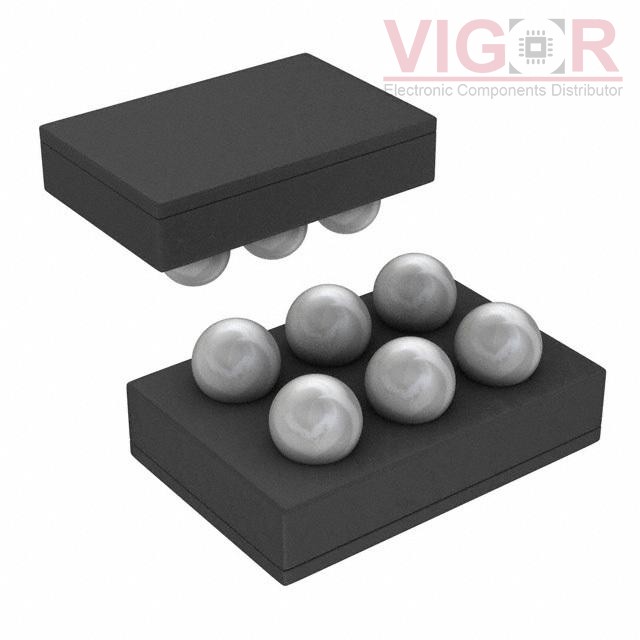

Image is for reference,
please contact us to get the real picture

Part No :

LM3691TLX-0.75/NOPB

Manufacturer
VIGOR
Description
SWITCHING REG, VOLTAGE-MODE, 1.7
Catalog
PMIC - Voltage Regulators - DC DC Switching Regulators
Shipped from
HK warehouse
Expected Shipping Date
Oct 03 - Oct 07 2025
DataSheet
LM3691TLX-0.75/NOPB PDF
Availability
6000 pieces
Unit Price
$0.46000

Current price of LM3691TLX-0.75/NOPB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LM3691TLX-0.75/NOPB Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Function:Step-Down
Output Configuration:Positive
Topology:Buck
Output Type:Fixed
Number of Outputs:1
Voltage - Input (Min):2.3V
Voltage - Input (Max):5.5V
Voltage - Output (Min/Fixed):0.75V
Voltage - Output (Max):-
Current - Output:1A
Frequency - Switching:4MHz
Synchronous Rectifier:Yes
Operating Temperature:-30°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:6-WFBGA, DSBGA
Supplier Device Package:6-DSBGA (1.5x1.3)
