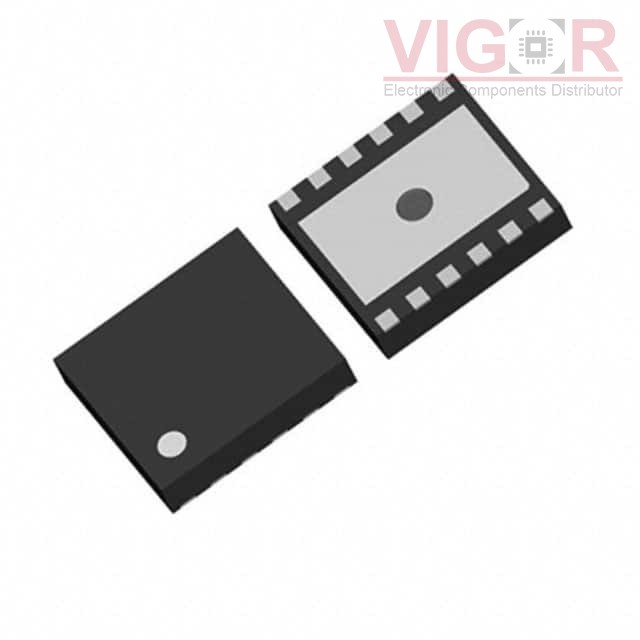

R1286K103M-TR

Part No :: R1286K103M-TR

Manufacturer: RICOH Electronic Devices Co., LTD.

Description: PWM STEP-UP/INVERTING DCDC CONVE

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

DataSheet: R1286K103M-TR PDF

Availability: 2690 pieces

Unit Price: ~~$1.14000~~

Current price of R1286K103M-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

R1286K103M-TR Specifications

Type	Description
Series:	R1286K
Package:	Tape & Reel (TR)
Part Status:	Active
Function:	Step-Up/Inverted
Output Configuration:	Positive and Negative
Topology:	Buck, Boost
Output Type:	Adjustable
Number of Outputs:	2
Voltage - Input (Min):	2.3V
Voltage - Input (Max):	5.5V
Voltage - Output (Min/Fixed):	-6V
Voltage - Output (Max):	5.8V
Current - Output:	300mA
Frequency - Switching:	1.75MHz
Synchronous Rectifier:	Yes
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	12-UFDFN Exposed Pad
Supplier Device Package:	DFN(PLP)2730-12

Please confirm the specifications of the products when ordering.
