RP402K001B-TR

Part No :: RP402K001B-TR

Manufacturer: RICOH Electronic Devices Co., LTD.

VIGOR # :: 3894498

Description: PWM/VFM STEP-UP DCDC CONVERTER W

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

DataSheet: RP402K001B-TR PDF

Country of origin: -

Date code: -

RP402K001B-TR Specifications

Type	Description
Series:	RP402x
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Function:	Step-Up
Output Configuration:	Positive
Topology:	Boost
Output Type:	Adjustable
Number of Outputs:	1
Voltage - Input (Min):	0.6V
Voltage - Input (Max):	4.6V
Voltage - Output (Min/Fixed):	1.8V
Voltage - Output (Max):	5.5V
Current - Output:	800mA
Frequency - Switching:	1.2MHz
Synchronous Rectifier:	Yes
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount

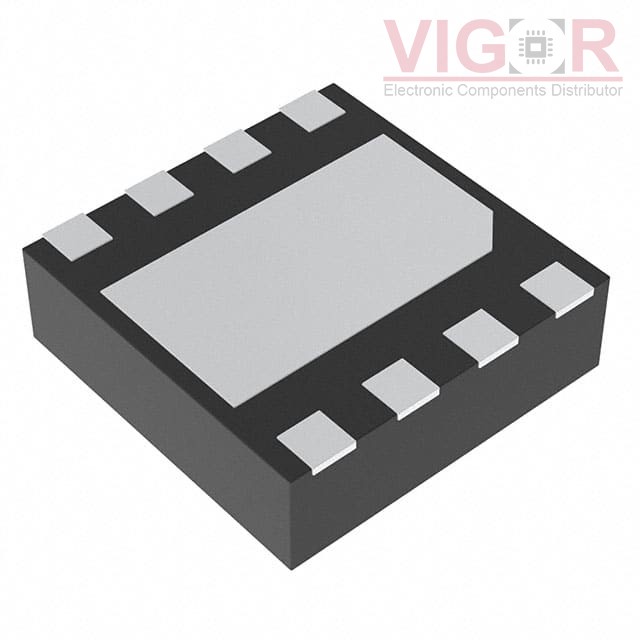

Package / Case:	8-UFDFN Exposed Pad
Supplier Device Package:	DFN(PLP)2020-8

Alternative Products

Part Number	Manufacturer & Description	Compare
RP402K002B-TR Match 100%	RICOH Electronic Devices Co., LTD. PWM/VFM STEP-UP DCDC CONVERTER W	RP402K001B-TR vs RP402K002B-TR
RP402K331B-TR Match 100%	VIGOR SWITCHING REGULATOR, CURRENT-MOD	RP402K001B-TR vs RP402K331B-TR
RP402K332A-TR Match 100%	RICOH Electronic Devices Co., LTD. PWM/VFM STEP-UP DCDC CONVERTER W	RP402K001B-TR vs RP402K332A-TR
RP402K001C-TR Match 100%	VIGOR SWITCHING REGULATOR, CURRENT-MOD	RP402K001B-TR vs RP402K001C-TR
RP402K001A-TR Match 100%	RICOH Electronic Devices Co., LTD. PWM/VFM STEP-UP DCDC CONVERTER W	RP402K001B-TR vs RP402K001A-TR
RP402K461B-TR Match 100%	RICOH Electronic Devices Co., LTD. PWM/VFM STEP-UP DCDC CONVERTER W	RP402K001B-TR vs RP402K461B-TR
