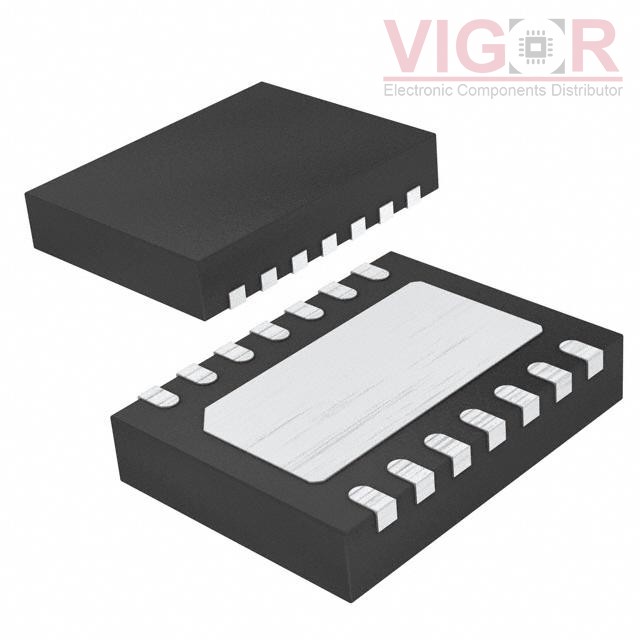

LT3509EDE#PBF

Part No :: LT3509EDE#PBF

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3906490

Description: IC REG BUCK ADJ 700MA DL 14DFN

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

DataSheet: LT3509EDE#PBF PDF

Country of origin: -

Date code: -

LT3509EDE#PBF Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Output Type:	Adjustable
Number of Outputs:	2
Voltage - Input (Min):	3.6V
Voltage - Input (Max):	36V
Voltage - Output (Min/Fixed):	0.8V
Voltage - Output (Max):	34.2V
Current - Output:	700mA
Frequency - Switching:	260kHz ~ 2.15MHz
Synchronous Rectifier:	No
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	14-WFDFN Exposed Pad
Supplier Device Package:	14-DFN (4x3)
