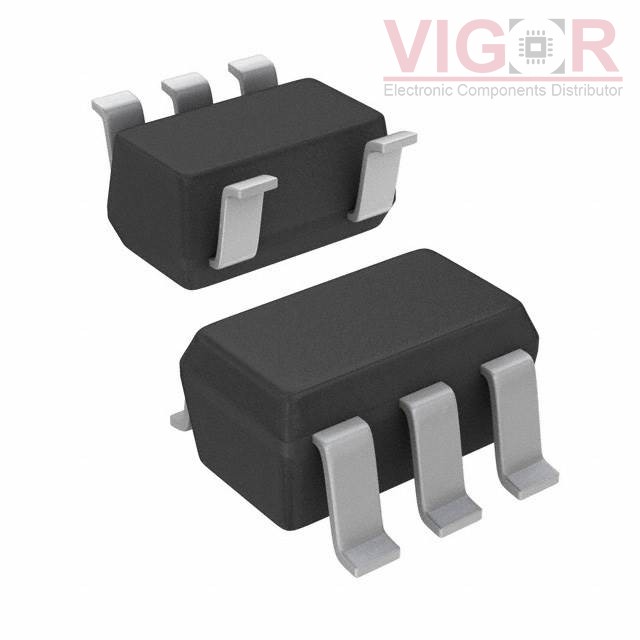

LM2760M5X/NOPB

Part No :: LM2760M5X/NOPB

Manufacturer: Texas Instruments

VIGOR # :: 4915472

Description: IC REG CHRG PUMP 3.3V 20MA SOT23

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

DataSheet: LM2760M5X/NOPB PDF

Country of origin: -

Date code: -

LM2760M5X/NOPB Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Function:	Step-Up
Output Configuration:	Positive
Topology:	Charge Pump
Output Type:	Fixed
Number of Outputs:	1
Voltage - Input (Min):	2V
Voltage - Input (Max):	4.4V
Voltage - Output (Min/Fixed):	3.3V
Voltage - Output (Max):	-
Current - Output:	20mA
Frequency - Switching:	750kHz
Synchronous Rectifier:	No
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	SC-74A, SOT-753
Supplier Device Package:	SOT-23-5

Alternative Products

Part Number	Manufacturer & Description	Compare
LM2767M5/NOPB Match 59%	Texas Instruments IC REG CHRG PUMP 2VIN 15MA SOT23	LM2760M5X/NOPB vs LM2767M5/NOPB
LM2767M5X/NOPB Match 59%	Texas Instruments IC REG CHRG PUMP 2VIN 15MA SOT23	LM2760M5X/NOPB vs LM2767M5X/NOPB
LM2767M5X Match 59%	Texas Instruments IC REG CHRG PUMP 2VIN 15MA SOT23	LM2760M5X/NOPB vs LM2767M5X
LM2760M5/NOPB Match 100%	Texas Instruments IC REG CHRG PUMP 3.3V 20MA SOT23	LM2760M5X/NOPB vs LM2760M5/NOPB
