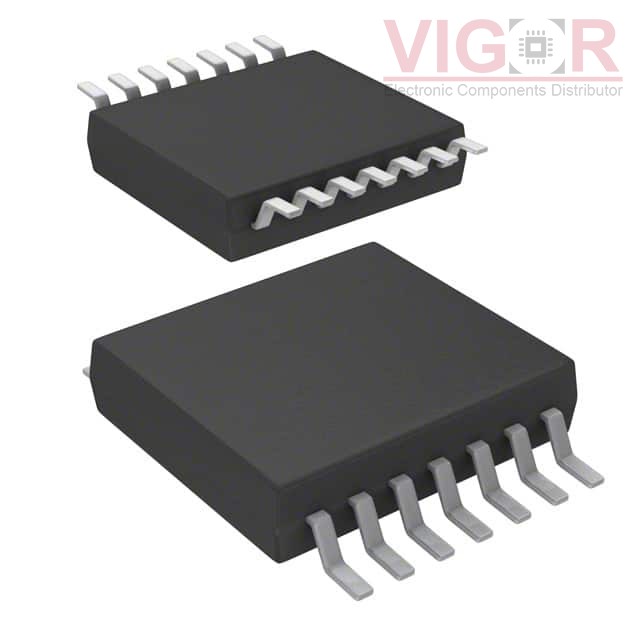

LM2685MTCX/NOPB

Part No :: LM2685MTCX/NOPB

Manufacturer: Texas Instruments

VIGOR # :: 4955417

Description: IC REG DL CHRPMP/LINEAR 14TSSOP

Catalog: PMIC - Voltage Regulators - Linear + Switching

DataSheet: LM2685MTCX/NOPB PDF

Country of origin: -

Date code: -

LM2685MTCX/NOPB Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Topology:	Charge Pump (1), Linear (LDO) (1)
Number of Outputs:	2
Frequency - Switching:	130kHz
Voltage/Current - Output 1:	±5V, 5.7V ~ 13V, 50mA
Voltage/Current - Output 2:	5V, 50mA
Voltage/Current - Output 3:	-
w/LED Driver:	No
w/Supervisor:	No
w/Sequencer:	No
Voltage - Supply:	2.85V ~ 6.5V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	14-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	14-TSSOP

Alternative Products

Part Number	Manufacturer & Description	Compare
LM2686MTC/NOPB Match 100%	VIGOR SWITCHED CAPACITOR REGULATOR	LM2685MTCX/NOPB vs LM2686MTC/NOPB
LM2686MTCX/NOPB Match 100%	VIGOR SWITCHED CAPACITOR REGULATOR	LM2685MTCX/NOPB vs LM2686MTCX/NOPB
LM2685MTC/NOPB Match 100%	Texas Instruments IC REG DL CHRPMP/LINEAR 14TSSOP	LM2685MTCX/NOPB vs LM2685MTC/NOPB
