AN77L09

Part No :: AN77L09

Manufacturer: Panasonic

VIGOR # :: 3743237

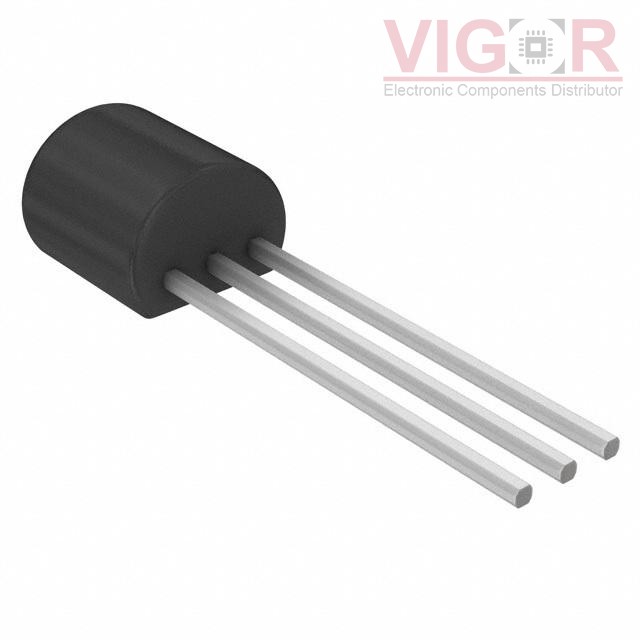

Description: IC REG LINEAR 9V 100MA TO92-3

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: AN77L09 PDF

Country of origin: -

Date code: -

AN77L09 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	19.86V
Voltage - Output (Min/Fixed):	9V
Voltage - Output (Max):	-
Voltage Dropout (Max):	-
Current - Output:	100mA
Current - Quiescent (Iq):	5 mA
Current - Supply (Max):	-
PSRR:	62dB (120Hz)
Control Features:	-
Protection Features:	Over Current, Over Temperature, Short Circuit
Operating Temperature:	-30°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	TO-226-3, TO-92-3 (TO-226AA)
Supplier Device Package:	TO-92-3

Alternative Products
