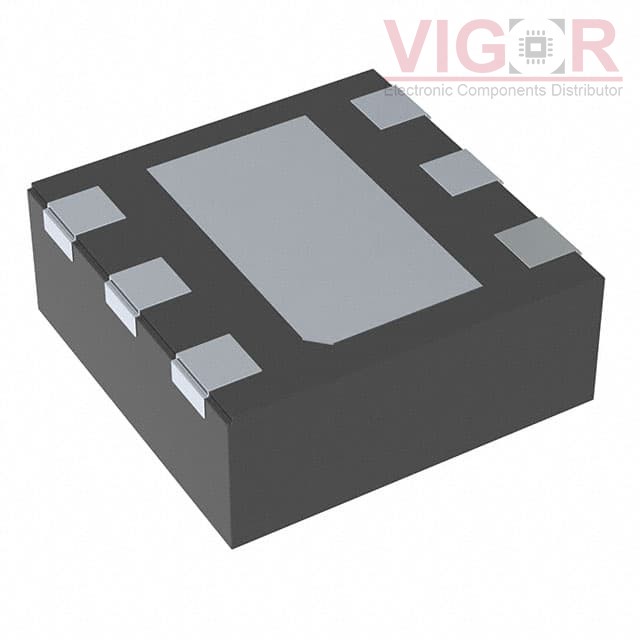

TPS74501PBQWDRVRQ1

Part No :: TPS74501PBQWDRVRQ1

Manufacturer: Texas Instruments

Description: IC REG LIN POS ADJ 500MA 6WSON

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: TPS74501PBQWDRVRQ1 PDF

Availability: 78 pieces

Current price of TPS74501PBQWDRVRQ1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TPS74501PBQWDRVRQ1 Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Positive
Output Type:	Adjustable
Number of Regulators:	1
Voltage - Input (Max):	6V
Voltage - Output (Min/Fixed):	0.55V
Voltage - Output (Max):	5.5V
Voltage Dropout (Max):	0.72V @ 500mA
Current - Output:	500mA
Current - Quiescent (Iq):	36 µA
Current - Supply (Max):	-
PSRR:	57dB ~ 35dB (1kHz ~ 1MHz)
Control Features:	Enable, Power Good
Protection Features:	Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-WDFN Exposed Pad
Supplier Device Package:	6-WSON (2x2)
