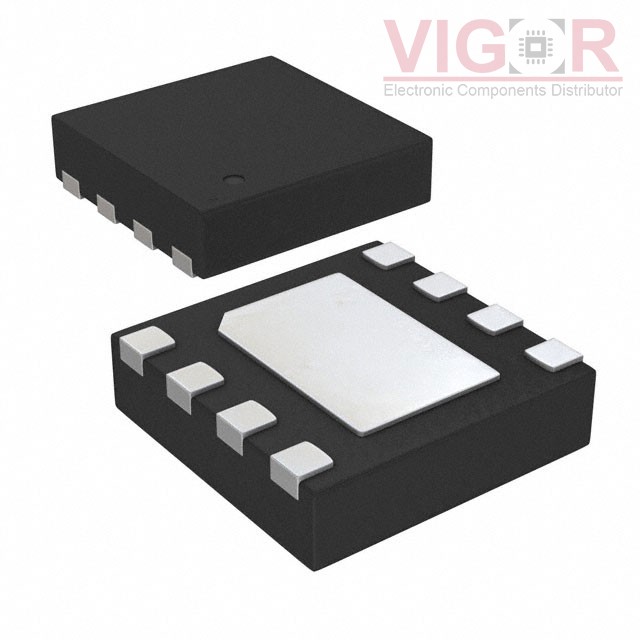

ADP7183ACPZN1.0-R7

Part No :: ADP7183ACPZN1.0-R7

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: IC REG LINEAR -1V 300MA 8LFCSP

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: ADP7183ACPZN1.0-R7 PDF

Availability: 2426 pieces

Current price of ADP7183ACPZN1.0-R7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ADP7183ACPZN1.0-R7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Negative
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	-5.5V
Voltage - Output (Min/Fixed):	-1V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.22V @ 300mA
Current - Output:	300mA
Current - Quiescent (Iq):	900 µA
Current - Supply (Max):	7 mA
PSRR:	85dB ~ 40dB (1kHz ~ 1MHz)
Control Features:	Enable
Protection Features:	Current Limit, Thermal Overload
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-UFDFN Exposed Pad, CSP
Supplier Device Package:	8-LFCSP (2x2)

Please confirm the specifications of the products when ordering.
