CS8141YTHA7

Part No :: CS8141YTHA7

Manufacturer: VIGOR

VIGOR # :: 3758791

Description: IC REG LINEAR 5V 500MA TO220-7

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: CS8141YTHA7 PDF

Country of origin: -

Date code: -

CS8141YTHA7 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	26V
Voltage - Output (Min/Fixed):	5V
Voltage - Output (Max):	-
Voltage Dropout (Max):	1.5V @ 500mA
Current - Output:	500mA
Current - Quiescent (Iq):	-
Current - Supply (Max):	-
PSRR:	75dB (120Hz)
Control Features:	Enable, Reset
Protection Features:	Over Temperature, Short Circuit
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole

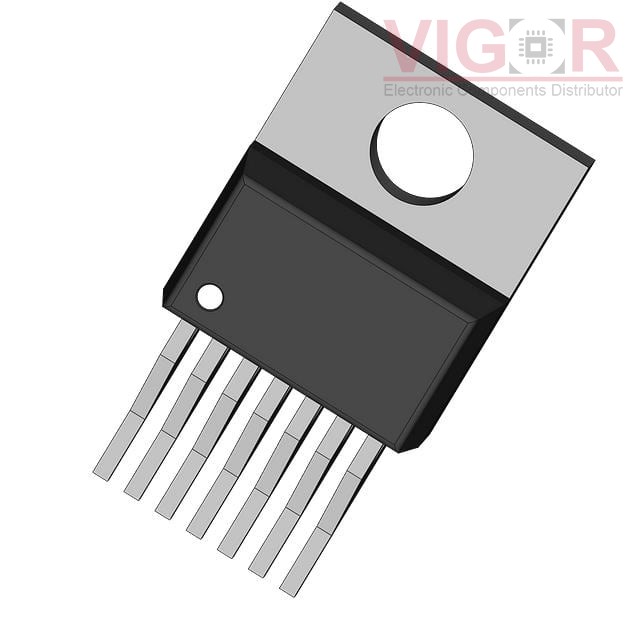

Package / Case:	TO-220-7 (Formed Leads)
Supplier Device Package:	TO-220-7

Alternative Products

Part Number	Manufacturer & Description	Compare
CS8140YTHA7 Match 100%	VIGOR IC REG LINEAR 5V 500MA TO220-7	CS8141YTHA7 vs CS8140YTHA7
CS8140YTVA7 Match 100%	VIGOR IC REG LINEAR 5V 500MA TO220-7	CS8141YTHA7 vs CS8140YTVA7
CS8141YTVA7 Match 100%	Sanyo Semiconductor/ON Semiconductor IC REG LINEAR 5V 500MA TO220-7	CS8141YTHA7 vs CS8141YTVA7
