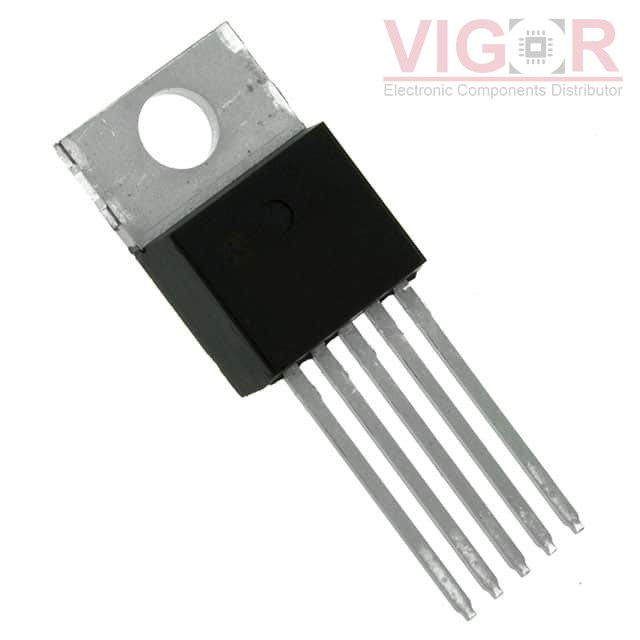

MCP1825-3302E/AT

Part No :: MCP1825-3302E/AT

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 3769070

Description: IC REG LINEAR 3.3V 500MA TO220-5

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: MCP1825-3302E/AT PDF

Country of origin: -

Date code: -

MCP1825-3302E/AT Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	6V
Voltage - Output (Min/Fixed):	3.3V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.35V @ 500mA
Current - Output:	500mA
Current - Quiescent (Iq):	220 µA
Current - Supply (Max):	-
PSRR:	60dB (100Hz)
Control Features:	Enable, Power Good
Protection Features:	Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	TO-220-5
Supplier Device Package:	TO-220-5

Alternative Products

Part Number	Manufacturer & Description	Compare
MCP1825-5002E/AT Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 5V 500MA TO220-5	MCP1825-3302E/AT vs MCP1825-5002E/AT
MCP1825-1202E/AT Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 1.2V 500MA TO220-5	MCP1825-3302E/AT vs MCP1825-1202E/AT
MCP1825-ADJE/AT Match 100%	Roving Networks / Microchip Technology IC REG LIN POS ADJ 500MA TO220-5	MCP1825-3302E/AT vs MCP1825-ADJE/AT
MCP1825-1802E/AT Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 1.8V 500MA TO220-5	MCP1825-3302E/AT vs MCP1825-1802E/AT
MCP1825-3002E/AT Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 3V 500MA TO220-5	MCP1825-3302E/AT vs MCP1825-3002E/AT
MCP1825-2502E/AT Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 2.5V 500MA TO220-5	MCP1825-3302E/AT vs MCP1825-2502E/AT

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 485

Shipped from

HK warehouse

Expected Shipping Date

Sep 23 - Sep 27 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.8600~~	~~$0.86~~
25	~~$0.7277~~	~~$18.19~~
100	~~$0.6538~~	~~$65.38~~

Current price of MCP1825-3302E/AT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
