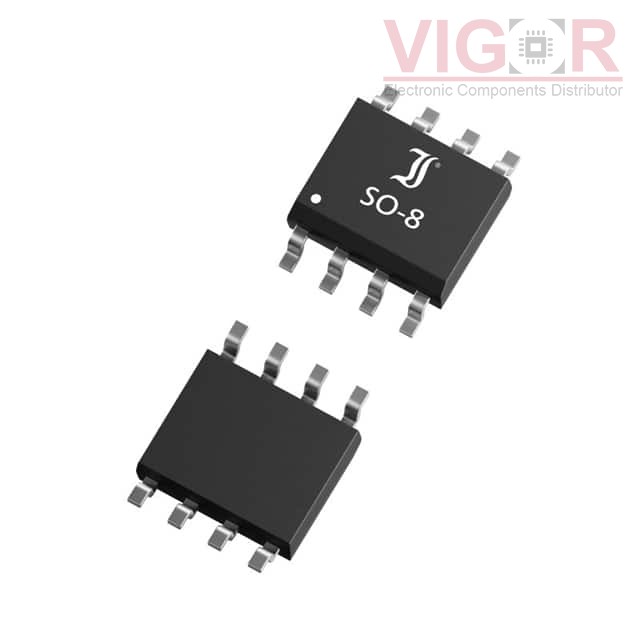

LDI1117-1.2D

Part No :: LDI1117-1.2D

Manufacturer: Diotec Semiconductor

VIGOR # :: 3776310

Description: IC REG LINEAR 1.2V 1.35A 8SO

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: LDI1117-1.2D PDF

Country of origin: -

Date code: -

LDI1117-1.2D Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	15V
Voltage - Output (Min/Fixed):	1.2V
Voltage - Output (Max):	-
Voltage Dropout (Max):	1.25V @ 1A
Current - Output:	1.35A
Current - Quiescent (Iq):	10 mA
Current - Supply (Max):	-
PSRR:	75dB (120Hz)
Control Features:	-
Protection Features:	Over Current, Over Temperature
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SO

Alternative Products

Part Number	Manufacturer & Description	Compare
LDI1117-ADD Match 100%	Diotec Semiconductor IC REG LINEAR POS ADJ 1.35A 8SO	LDI1117-1.2D vs LDI1117-ADD
LDI1117-1.5D Match 100%	Diotec Semiconductor IC REG LINEAR 1.5V 1.35A 8SO	LDI1117-1.2D vs LDI1117-1.5D
LDI1117-05D Match 100%	Diotec Semiconductor IC REG LINEAR 5V 1.35A 8SO	LDI1117-1.2D vs LDI1117-05D
LDI1117-3.3D Match 100%	Diotec Semiconductor IC REG LINEAR 3.3V 1.35A 8SO	LDI1117-1.2D vs LDI1117-3.3D
LDI1117-2.5D Match 100%	Diotec Semiconductor IC REG LINEAR 2.5V 1.35A 8SO	LDI1117-1.2D vs LDI1117-2.5D
LDI1117-1.8D Match 100%	Diotec Semiconductor IC REG LINEAR 1.8V 1.35A 8SO	LDI1117-1.2D vs LDI1117-1.8D

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 3396

Shipped from

HK warehouse

Expected Shipping Date

Sep 21 - Sep 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.1556~~	~~$0.16~~

Current price of LDI1117-1.2D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

LP2992ILDX-3.3/NOPB

IC REG LINEAR 3.3V 250MA 6WSON

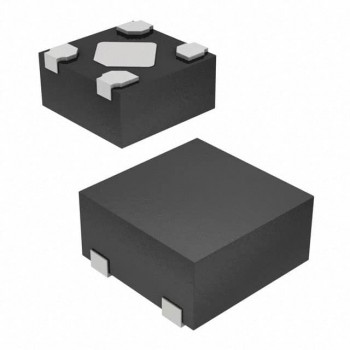

LDLN025PU33R
