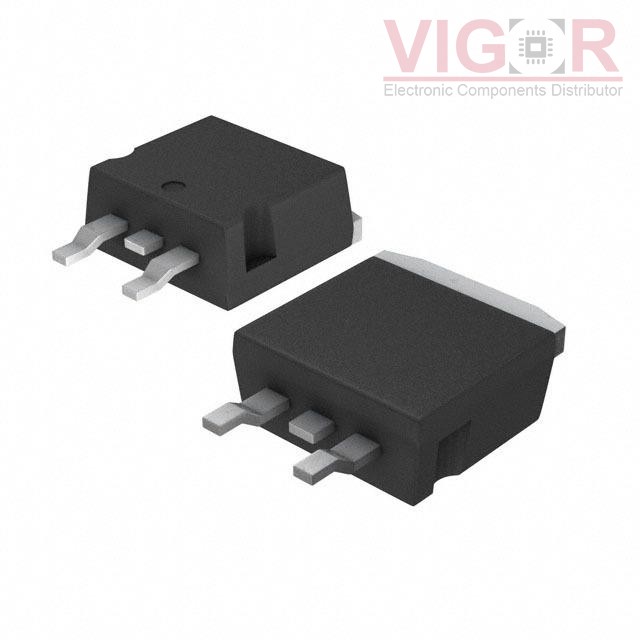

L7809ACD2T

Part No :: L7809ACD2T

Manufacturer: STMicroelectronics

VIGOR # :: 4867229

Description: IC REG LINEAR 9V 1.5A D2PAK

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: L7809ACD2T PDF

Country of origin: -

Date code: -

L7809ACD2T Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	35V
Voltage - Output (Min/Fixed):	9V
Voltage - Output (Max):	-
Voltage Dropout (Max):	2V @ 1A (Typ)
Current - Output:	1.5A
Current - Quiescent (Iq):	6 mA
Current - Supply (Max):	-
PSRR:	61dB (120Hz)
Control Features:	-
Protection Features:	Over Temperature, Short Circuit
Operating Temperature:	0°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	D2PAK
