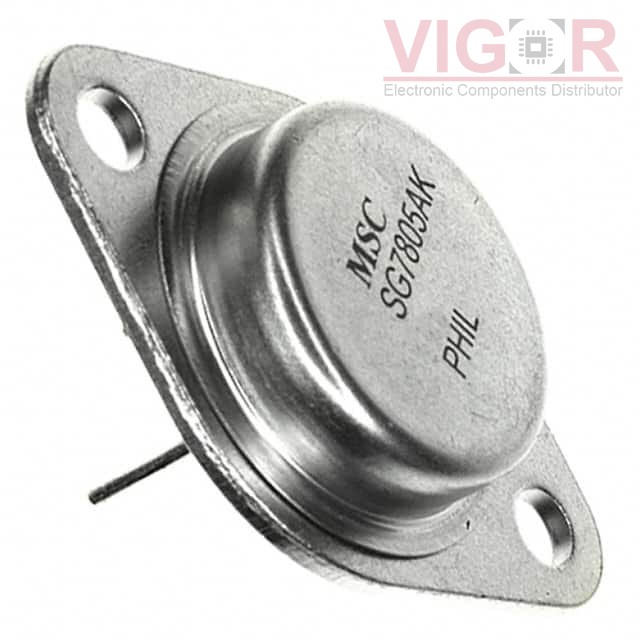

SG7805AK

Part No :: SG7805AK

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 4869120

Description: IC REG LINEAR 5V 1.5A TO204AD

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: SG7805AK PDF

Country of origin: -

Date code: -

SG7805AK Specifications

Type	Description
Series:	Military, MIL-STD-883
Package:	Bulk
Part Status:	Active
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	50V
Voltage - Output (Min/Fixed):	5V
Voltage - Output (Max):	-
Voltage Dropout (Max):	2.5V @ 500mA
Current - Output:	1.5A
Current - Quiescent (Iq):	-
Current - Supply (Max):	7 mA
PSRR:	68dB (120Hz)
Control Features:	Current Limit, Enable
Protection Features:	Over Current, Over Temperature
Operating Temperature:	-55°C ~ 125°C (TA)
Mounting Type:	Through Hole
Package / Case:	TO-204AA, TO-3
Supplier Device Package:	TO-204AD (TO-3)

Alternative Products

Part Number	Manufacturer & Description	Compare
SG7812AK Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 12V 1.5A TO204AD	SG7805AK vs SG7812AK
SG7805K Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 5V 1.5A TO204AD	SG7805AK vs SG7805K
SG7805AK-883B Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 5V 1.5A TO204AD	SG7805AK vs SG7805AK-883B
SG7815K Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 15V 1.5A TO204AD	SG7805AK vs SG7815K
SG7805K-JAN Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 5V 1.5A TO204AD	SG7805AK vs SG7805K-JAN
SG7812AK-DESC Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 12V 1.5A TO204AD	SG7805AK vs SG7812AK-DESC

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1100

Shipped from

HK warehouse

Expected Shipping Date

Jul 26 - Jul 30 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of SG7805AK is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
