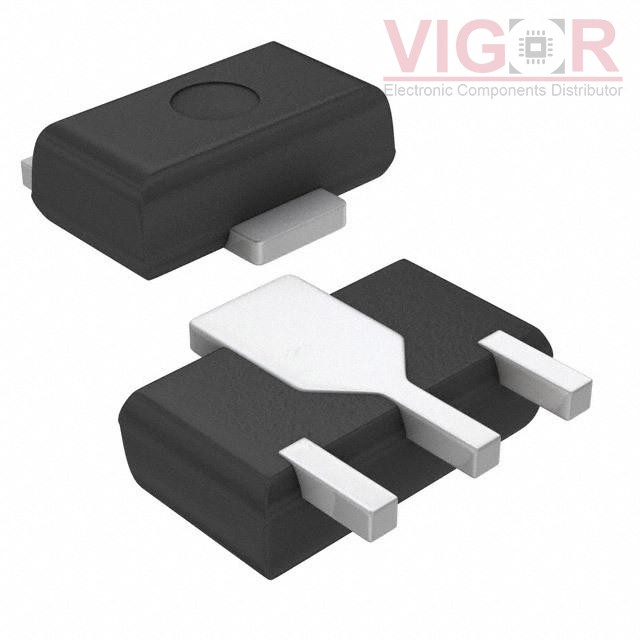

AN77L09M

Part No :: AN77L09M

Manufacturer: Panasonic

VIGOR # :: 4871740

Description: IC REG LINEAR 9V 100MA 3HSIP

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: AN77L09M PDF

Country of origin: -

Date code: -

AN77L09M Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	19.86V
Voltage - Output (Min/Fixed):	9V
Voltage - Output (Max):	-
Voltage Dropout (Max):	-
Current - Output:	100mA
Current - Quiescent (Iq):	5 mA
Current - Supply (Max):	-
PSRR:	62dB (120Hz)
Control Features:	-
Protection Features:	Over Current, Over Temperature, Short Circuit
Operating Temperature:	-30°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	TO-243AA
Supplier Device Package:	3-HSIP

Alternative Products

Part Number	Manufacturer & Description	Compare
AN77L10M Match 100%	Panasonic IC REG LINEAR 10V 100MA 3HSIP	AN77L09M vs AN77L10M
AN77L12M Match 100%	Panasonic IC REG LINEAR 12V 100MA 3HSIP	AN77L09M vs AN77L12M
AN77L07M-E1 Match 100%	Panasonic IC REG LINEAR 7V 100MA 3HSIP	AN77L09M vs AN77L07M-E1
AN77L12M-E1 Match 100%	Panasonic IC REG LINEAR 12V 100MA 3HSIP	AN77L09M vs AN77L12M-E1
AN77L045M-E1 Match 100%	Panasonic IC REG LINEAR 4.5V 100MA 3HSIP	AN77L09M vs AN77L045M-E1
AN77L06M Match 100%	Panasonic IC REG LINEAR 6V 100MA 3HSIP	AN77L09M vs AN77L06M
