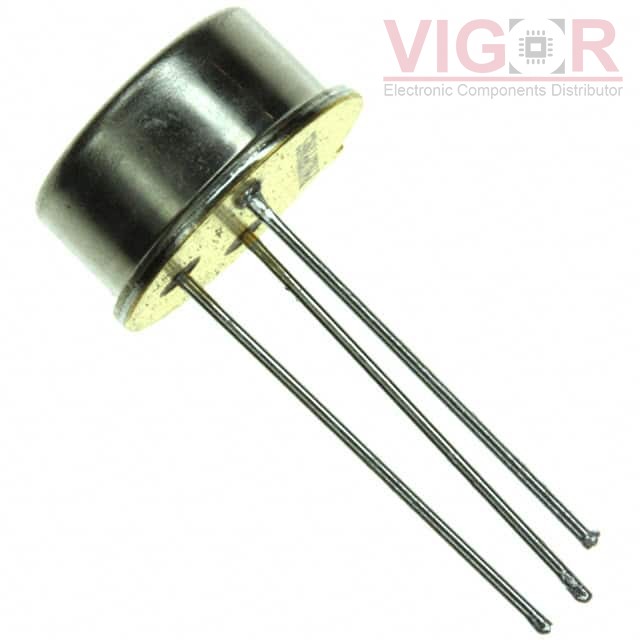

SG7812AT

Part No :: SG7812AT

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 4871814

Description: IC REG LINEAR 12V 1.5A TO39

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: SG7812AT PDF

Country of origin: -

Date code: -

SG7812AT Specifications

Type	Description
Series:	Military, MIL-STD-883
Package:	Bulk
Part Status:	Discontinued at Digi-Key
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	50V
Voltage - Output (Min/Fixed):	12V
Voltage - Output (Max):	-
Voltage Dropout (Max):	2.5V @ 500mA
Current - Output:	1.5A
Current - Quiescent (Iq):	-
Current - Supply (Max):	7 mA
PSRR:	61dB (120Hz)
Control Features:	Current Limit, Enable
Protection Features:	Over Current, Over Temperature
Operating Temperature:	-55°C ~ 125°C (TA)
Mounting Type:	Through Hole
Package / Case:	TO-205AD, TO-39-3 Metal Can
Supplier Device Package:	TO-39

Alternative Products

Part Number	Manufacturer & Description	Compare
SG7805T Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 5V 1.5A TO39	SG7812AT vs SG7805T
SG7815AT Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 15V 1.5A TO39	SG7812AT vs SG7815AT
SG7815AT-883B Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 15V 1.5A TO39	SG7812AT vs SG7815AT-883B
SG7812T Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 12V 1.5A TO39	SG7812AT vs SG7812T
SG7805AT Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 5V 1.5A TO39	SG7812AT vs SG7805AT
SG7812T-883B Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 12V 1.5A TO39	SG7812AT vs SG7812T-883B
