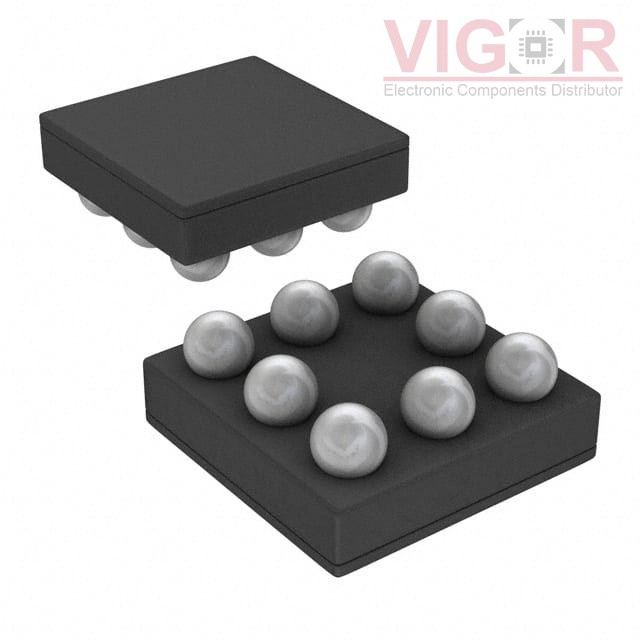

LP3986TLX-2525/NOPB

Part No :: LP3986TLX-2525/NOPB

Manufacturer: Texas Instruments

VIGOR # :: 4871982

Description: IC REG LINEAR 2.5V 150MA 8DSBGA

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: LP3986TLX-2525/NOPB PDF

Country of origin: -

Date code: -

LP3986TLX-2525/NOPB Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	2
Voltage - Input (Max):	6V
Voltage - Output (Min/Fixed):	2.5V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.1V @ 150mA
Current - Output:	150mA
Current - Quiescent (Iq):	130 µA
Current - Supply (Max):	320 µA
PSRR:	60dB ~ 50dB (1kHz ~ 10kHz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature, Short Circuit
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	8-WFBGA, DSBGA
Supplier Device Package:	8-DSBGA (1.56x1.56)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 3810

Shipped from

HK warehouse

Expected Shipping Date

Jan 14 - Jan 18 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of LP3986TLX-2525/NOPB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
