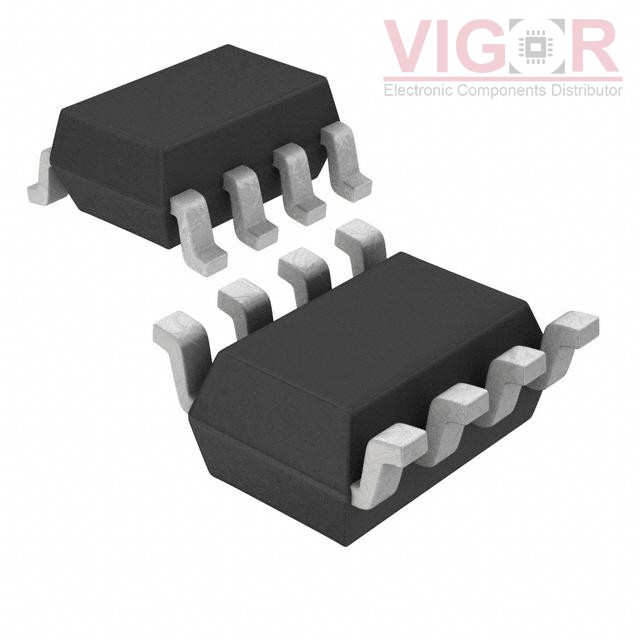

LT3009ESC8-2.5

Part No :: LT3009ESC8-2.5

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 4875185

Description: IC REG LINEAR 2.5V 20MA SC70

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: LT3009ESC8-2.5 PDF

Country of origin: -

Date code: -

LT3009ESC8-2.5 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	20V
Voltage - Output (Min/Fixed):	2.5V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.45V @ 20mA
Current - Output:	20mA
Current - Quiescent (Iq):	6 µA
Current - Supply (Max):	1 mA
PSRR:	63dB (120Hz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature, Reverse Polarity
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	8-VFSOP (0.049", 1.25mm Width)
Supplier Device Package:	SC-70

Alternative Products

Part Number	Manufacturer & Description	Compare
LT3009ESC8-3.3 Match 100%	Linear Technology (Analog Devices, Inc.) IC REG LINEAR 3.3V 20MA SC70	LT3009ESC8-2.5 vs LT3009ESC8-3.3
LT3009ESC8-1.5 Match 100%	Linear Technology (Analog Devices, Inc.) IC REG LINEAR 1.5V 20MA SC70	LT3009ESC8-2.5 vs LT3009ESC8-1.5
LT3009ESC8-5 Match 100%	Linear Technology (Analog Devices, Inc.) IC REG LINEAR 5V 20MA SC70	LT3009ESC8-2.5 vs LT3009ESC8-5
LT3009ESC8-1.2 Match 100%	Linear Technology (Analog Devices, Inc.) IC REG LINEAR 1.2V 20MA SC70	LT3009ESC8-2.5 vs LT3009ESC8-1.2
LT3009ESC8 Match 100%	Linear Technology (Analog Devices, Inc.) IC REG LINEAR POS ADJ 20MA SC70	LT3009ESC8-2.5 vs LT3009ESC8
LT3009ESC8-1.8 Match 100%	Linear Technology (Analog Devices, Inc.) IC REG LINEAR 1.8V 20MA SC70	LT3009ESC8-2.5 vs LT3009ESC8-1.8
